Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

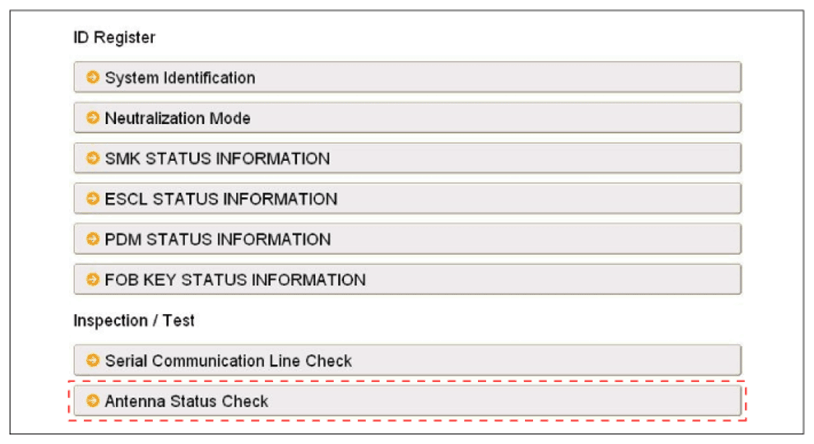

Fig 1: Scantool Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

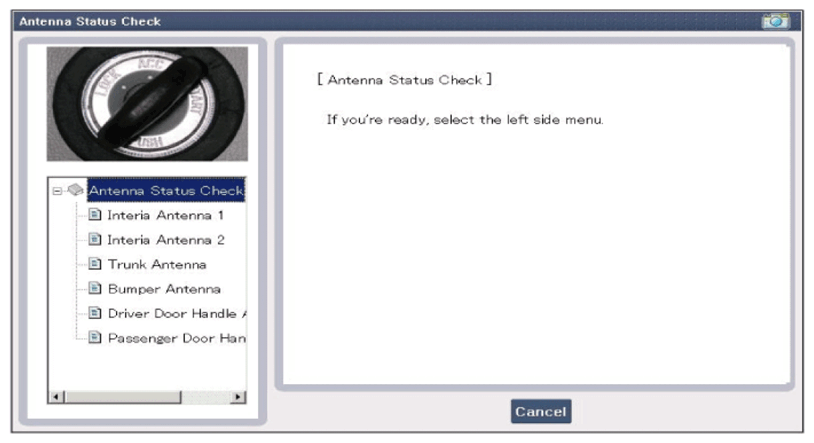

Fig 2: Scantool Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a GDS.

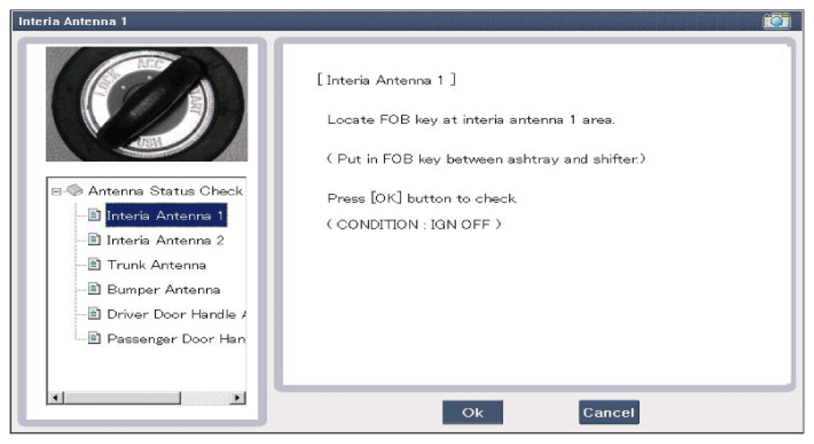

Fig 3: Scantool Display - Interia Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

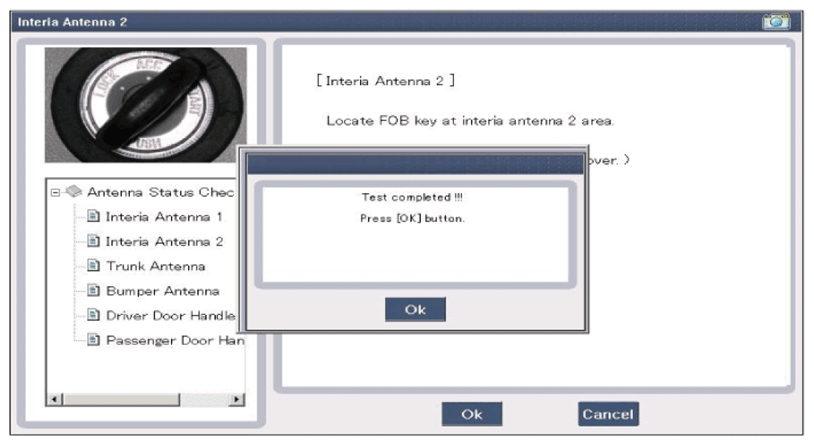

Fig 4: Scantool Display - Interia Antenna 2 (Test Complete)
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
1. INTERIOR Antenna 1
2. INTERIOR Antenna 2
3. Trunk antenna
4. BUMPER/ Trunk Antenna
5. DRV_DR Antenna
6. AST_DR Antenna
