Timing Chain: Components

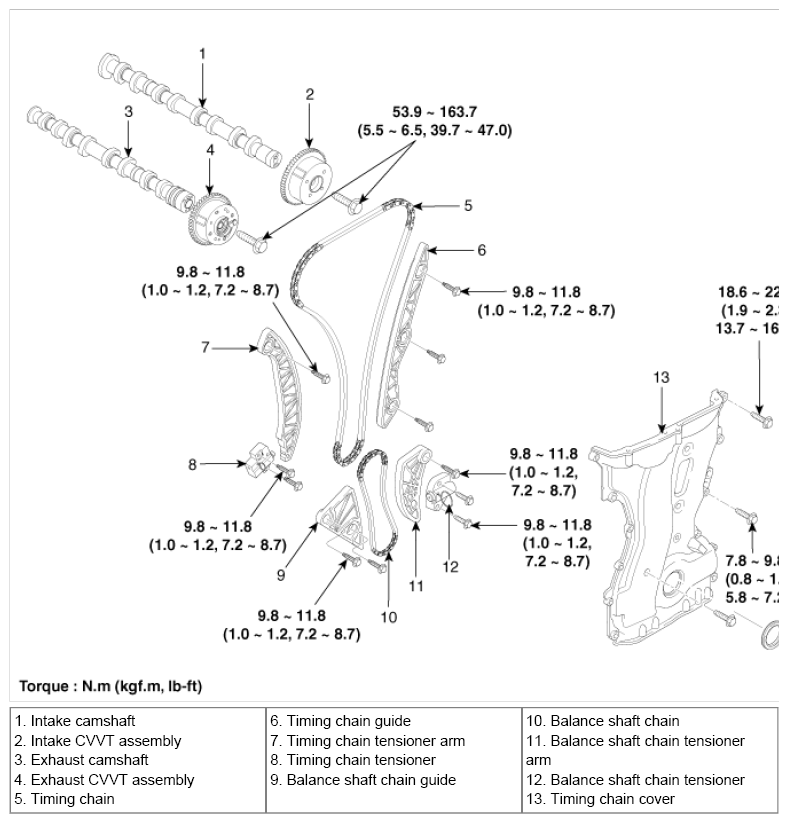

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G07415376

Courtesy of KIA MOTORS AMERICA, INC.
