Home >> Kia >> 2011 >> Sorento Base, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Connector End Views >> Instrument Panel Module (IPM)

Instrument Panel Module (IPM)

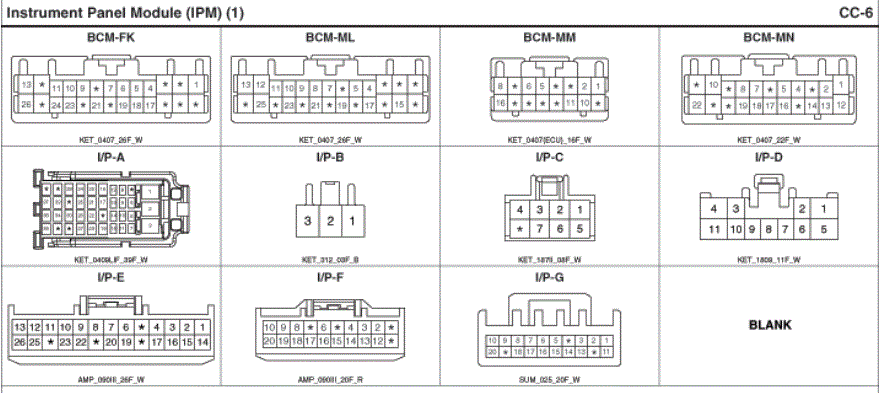

Fig 1: Instrument Panel Module (IPM) Connector End Views

G00599501

Courtesy of KIA MOTORS AMERICA, INC.
