Variant coding

  1. Connect scantool to Data Link Connector (DLC)
  2. IG "ON"
  3. Using scantool, Perform Variant coding program.Fig 1.
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
  6. Go to "COMPONENT INSPECTION " procedure.

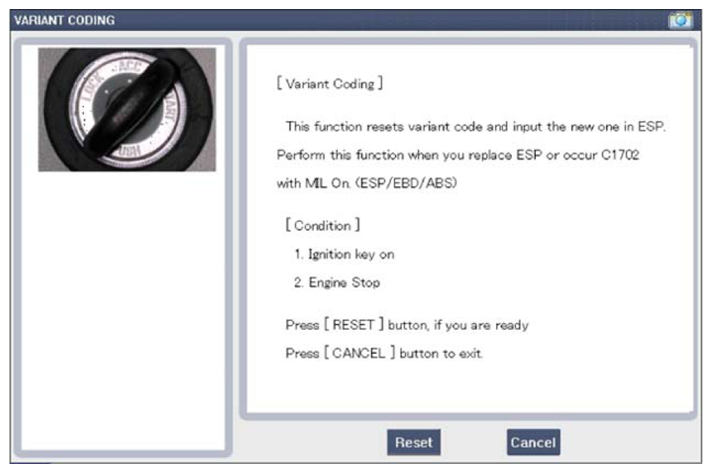

    Fig 1: Screen Display - Scantool Diagnostic Item - Variant Coding
    G07401114Courtesy of KIA MOTORS AMERICA, INC.
