Components and Components Location: Components

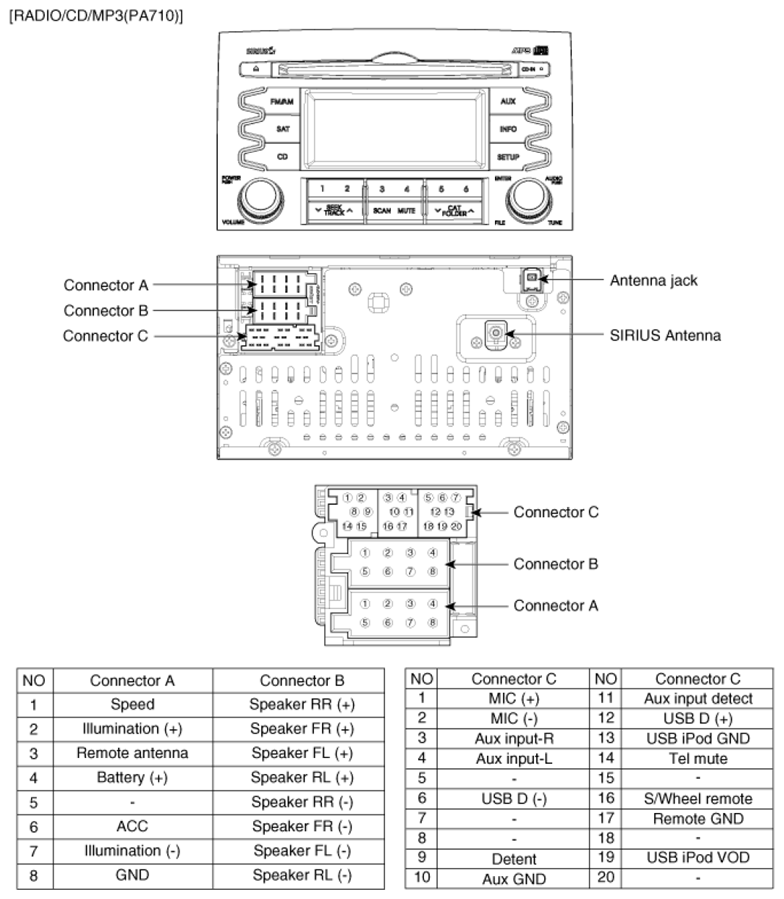

Fig 1: Identifying Audio Unit Components Location - RADIO/CD/MP3 (PA710)
G07416313Courtesy of KIA MOTORS AMERICA, INC.

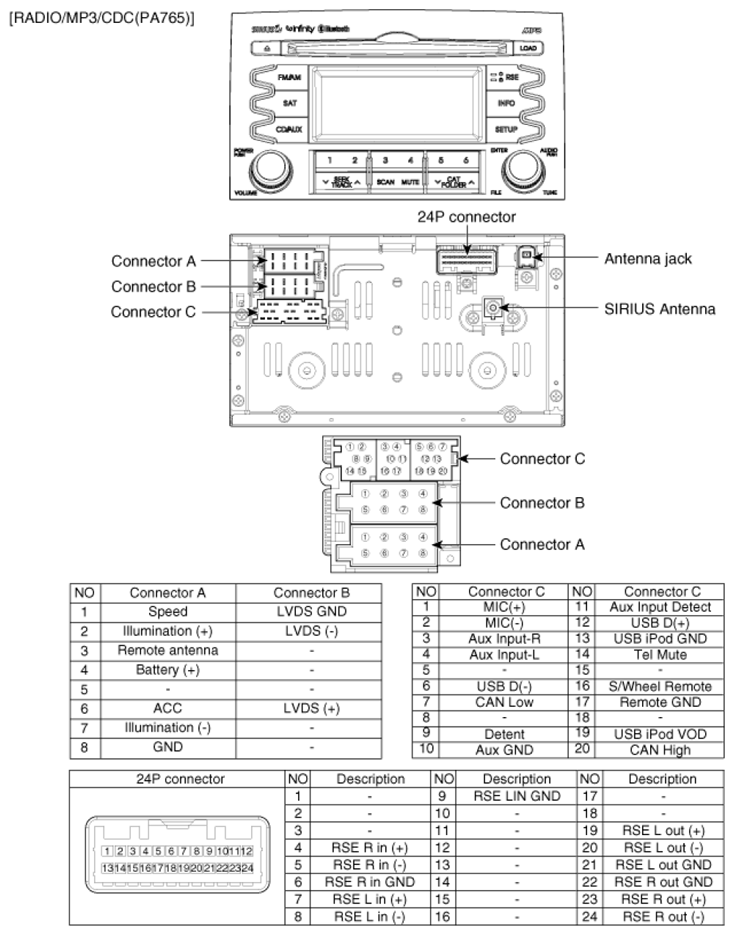

Fig 2: Identifying Audio Unit Components Location - RADIO/MP3/CDC/ (PA765)
G07416314Courtesy of KIA MOTORS AMERICA, INC.
