Home >> Kia >> 2011 >> Sorento Base, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle Assembly >> Front Hub Knuckle Tone Wheel >> Components and Components Location >> Components

Components and Components Location: Components

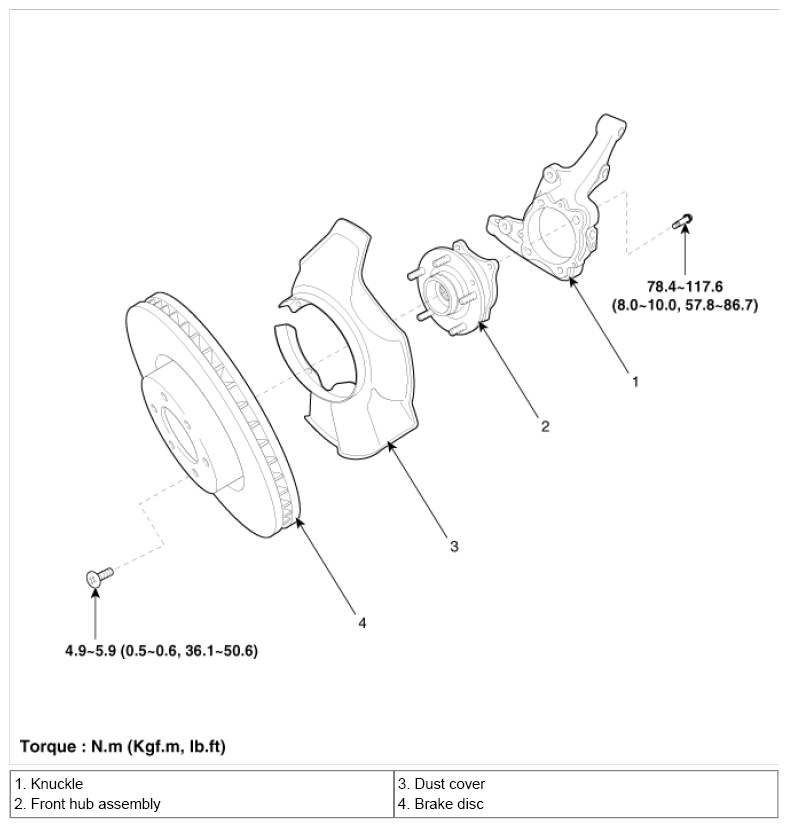

Fig 1: Exploded View Of Front Hub/Knuckle With Torque Specifications

G07419804

Courtesy of KIA MOTORS AMERICA, INC.
