Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

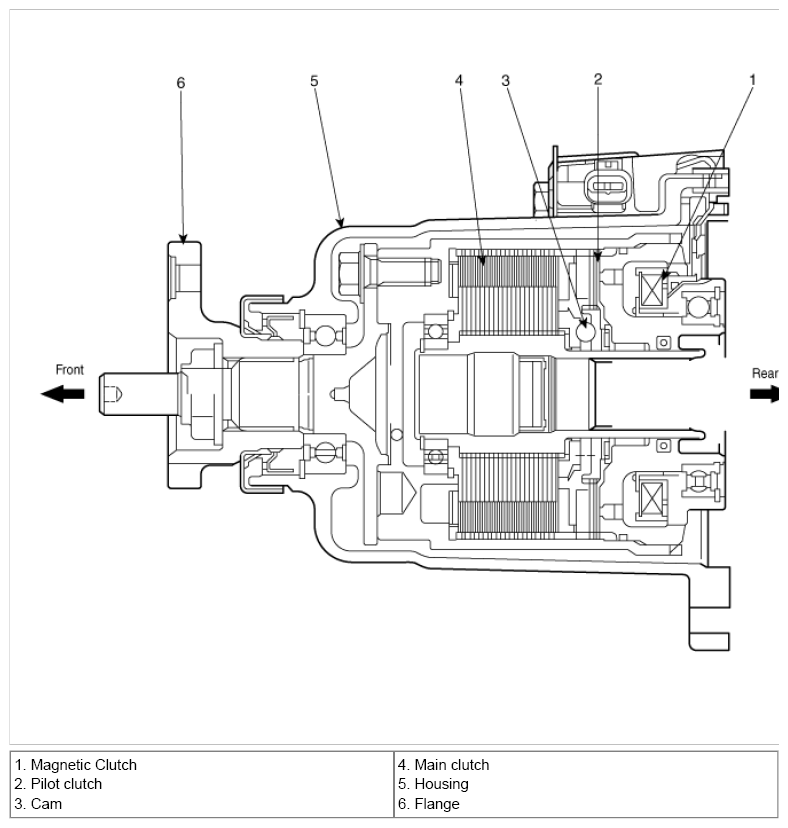

Fig 1: Identifying Intelligent Torque Controlled Coupling Components Location
G07419795Courtesy of KIA MOTORS AMERICA, INC.
