Component Location
WARNING: This page is about a different car, the 2011 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

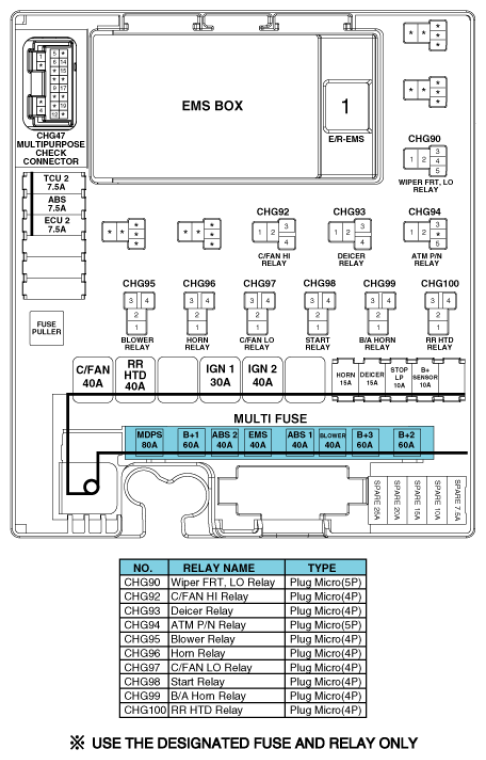

ENGINE COMPARTMENT RELAY BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | |
|---|---|---|---|
| MULTI FUSE | MDPS | 80A | EPS Control Module |
| B+1 | 60A | I/P Junction Box (PDM 15A, DR LOCK 15A, HAZARD 15A, IPS 4, IPS 5, IPS 6, IPS 7) | |
| ABS 2 | 40A | Multipurpose Check Connector, ESC Module | |
| EMS | 40A | EMS Box (TCU 1 15A, ECU 30A, A/CON 10A, F/PUMP 15A) | |
| ABS 1 | 40A | Multipurpose Check Connector, ESC Module | |
| BLOWER | 40A | Blower Relay | |
| B+3 | 60A | I/P Junction Box (P/SEAT (DRV) 20A, SAFETY POWER WINDOW 20A, SMART KEY 10A, TPMS 7.5A Power Connector (AUDIO 1 10A, ROOM LP 10A)) | |
| B+2 | 60A | I/P Junction Box (Power Window Relay, SUNROOF 15A, AMP 25A, IPS 0, IPS 1, IPS 2, IPS 3) | |
| FUSE | C/FAN | 40A | E/R Fuse & Relay Box (C/FAN LO Relay, C/FAN HI Relay) |
| RR HTD | 40A | E/R Fuse & Relay Box (RR HTD Relay) | |
| IGN 1 | 30A | PDM Relay Box (IGN1 Relay), Ignition Switch | |
| IGN 2 | 40A | E/R Fuse & Relay Box (Start Relay), PDM Relay Box (IGN2 Relay), Ignition Switch | |
| HORN | 15A | E/R Fuse & Relay Box (Horn Relay, B/A Horn Relay) | |
| DEICER | 15A | E/R Fuse & Relay Box (Deicer Relay, RR HTD Relay) | |
| STOP LP | 10A | Stop Lamp Switch, ICM Relay Box (DBC Relay) | |
| B+ SENSOR | 10A | Batter Sensor | |
| ECU 2 | 7.5A | E/R Fuse & Relay Box (ATM P/N Relay), Mass Air Flow Sensor, PCM | |
| ABS | 7.5A | Multipurpose Check Connector, ESC Module | |
| TCU 2 | 7.5A | Transaxle Range Switch (A/T), Vehicle Speed Sensor (M/T) | |
| * USE THE DESIGNATED FUSE AND RELAY ONLY | |||
EMS BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | |||||||
|---|---|---|---|---|---|---|---|---|---|
| F/PUMP | 15A | EMS Box(F/PUMP relay) | |||||||
| SENSOR 4 | 15A | E/R Fuse & Relay Box(C/FAN HI, LO Relay), EMS Box(F/PUMP Relay), Oxygen Sensor (UP, DOWN), PCM | |||||||
| SENSOR 3 | 10A | EMS Box(A/CON Relay), Injector(#1, #2, #3, #4) | |||||||
| SENSOR 3 | 10A | - | |||||||
| TCU 1 | 15A | PCM | |||||||
| A/CON | 10A | EMS Box(A/CON Relay) | |||||||
| SENSOR 1 | 10A | Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/2, Oil Control Valve #1/2, Canister Purge Copntrol Solenoid Valve, Variable Intake Manifold Valve, Canister Close Valve | |||||||
| ECU 1 | 20A | Igniton Coil (#1, #2, #3, #4), Condenser | |||||||
| ECU | 30A | EMS Box(Engine Control relay) | |||||||
| * USE THE DESIGNATED FUSE AND RELAY ONLY | |||||||||
