Component Location
WARNING: This page is about a different car, the 2011 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

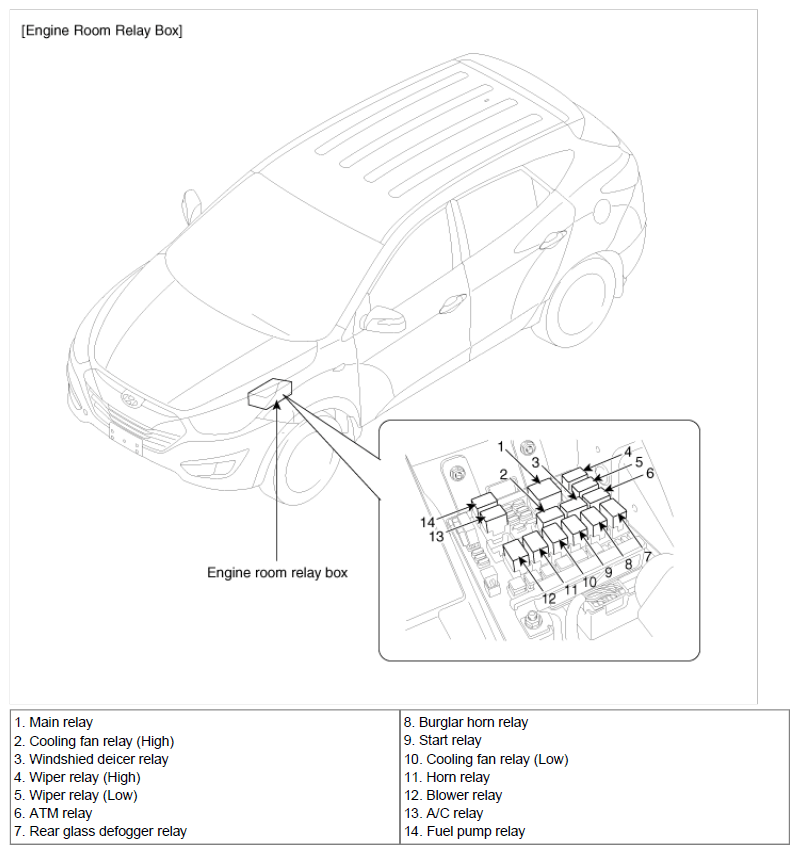

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Main Relay |
| Cooling Fan Relay (High) |
| Windshield Deicer Relay |
| Wiper Relay (High) |
| Wiper Relay (Low) |
| ATM Relay |
| Rear Glass Defogger Relay |
| Burglar Horn Relay |
| Start Relay |
| Cooling Fan Relay (Low) |
| Horn Relay |
| Blower Relay |
| A/C Relay |
| Fuel Pump Relay |
PASSENGER COMPARTMENT RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Rear Wiper Relay |
| Rear Seat Heater Relay |
| DBC (Downhill Brake Control) Relay |
| Flasher Sound Relay |
| ACC Relay |
| IG1 Relay |
| IG2 Relay |
