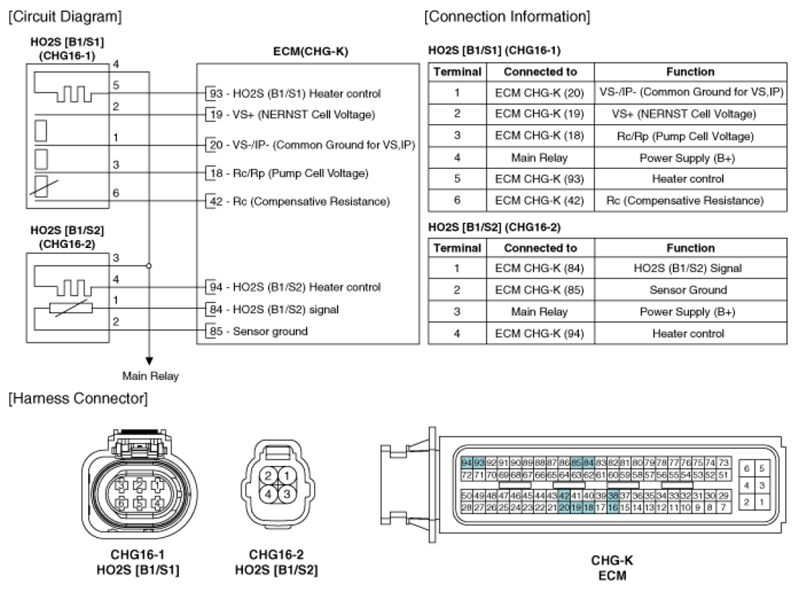

Home >> Kia >> 2011 >> Sorento Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Heated Oxygen Sensor (HO2S) >> Schematic Diagrams >> Circuit Diagram
