Schematic Diagram: Notes

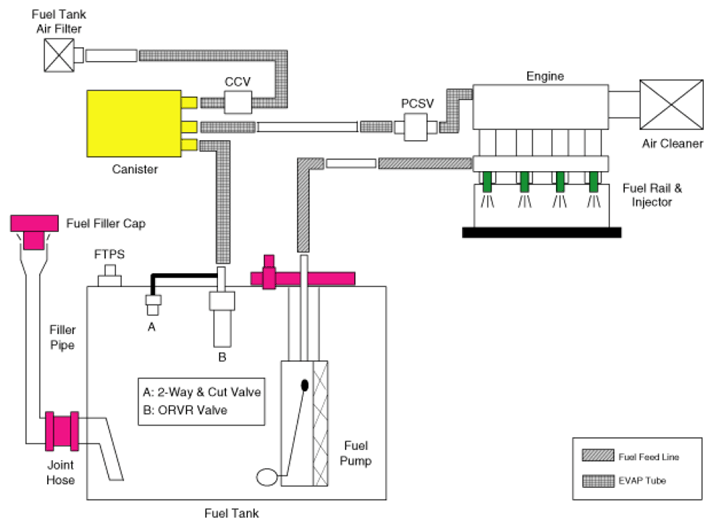

Fig 1: Evaporative Emission Control System Diagram

G07418840

Courtesy of KIA MOTORS AMERICA, INC.
