Home >> Kia >> 2011 >> Sorento Base, Automatic >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Rear Driveshaft Assembly >> Rear Driveshaft >> Components and Components Location >> Components

Components and Components Location: Components

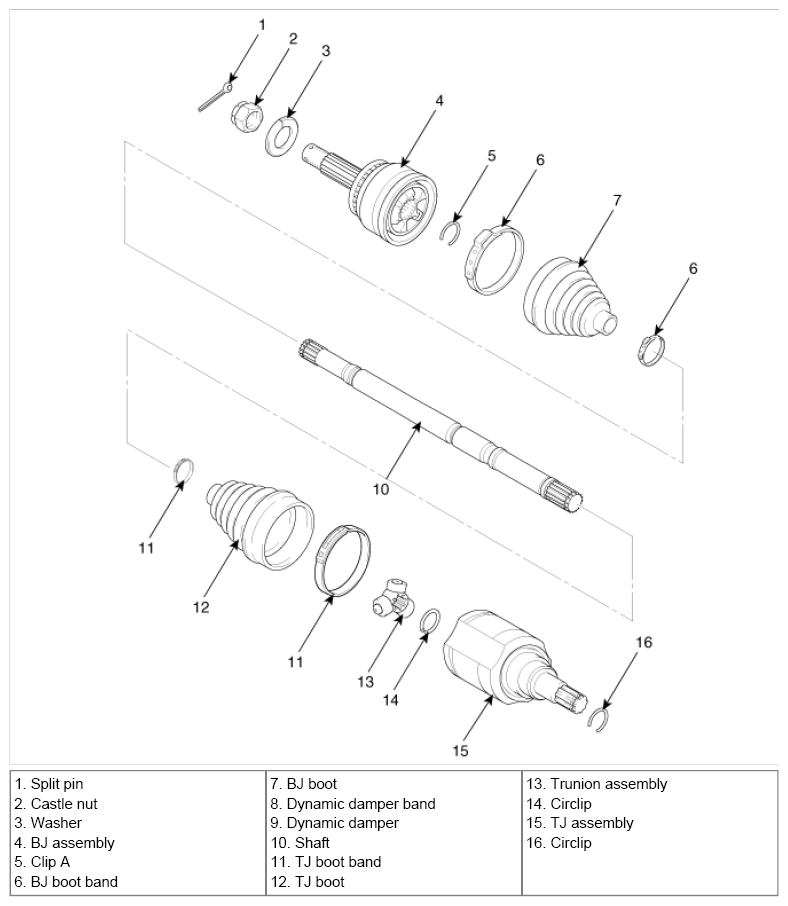

Fig 1: Exploded View Of Rear Driveshaft

G07419622

Courtesy of KIA MOTORS AMERICA, INC.
