Components and Components Location: Components

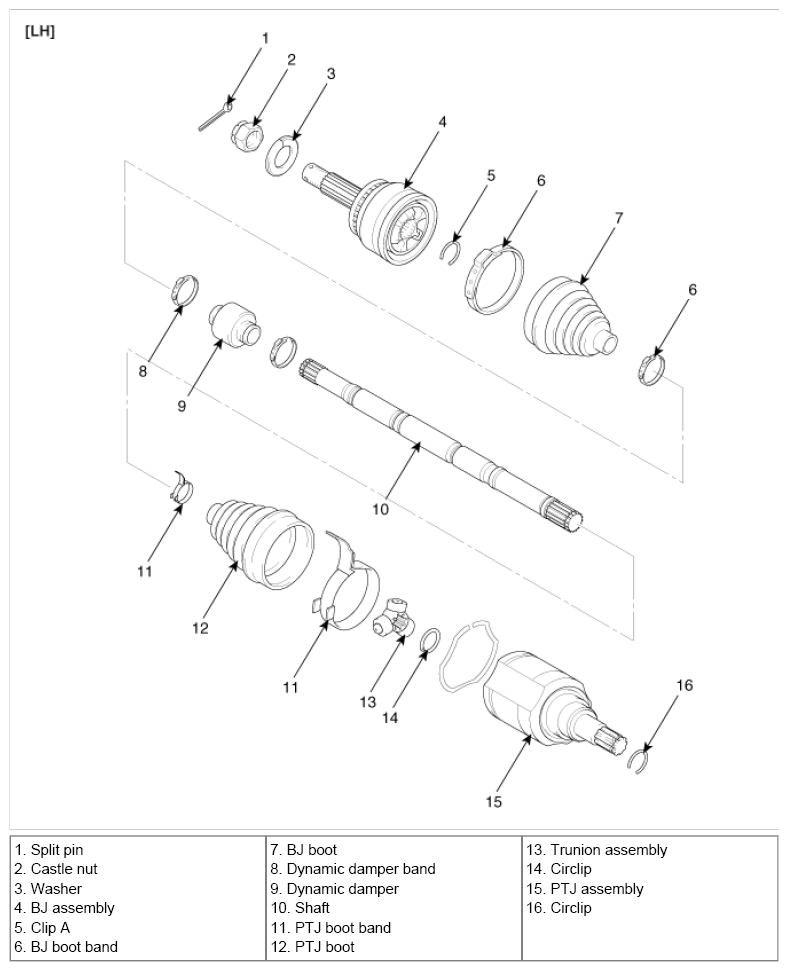

Fig 1: Identifying Front Driveshaft Components Location (LH)

Courtesy of KIA MOTORS AMERICA, INC.

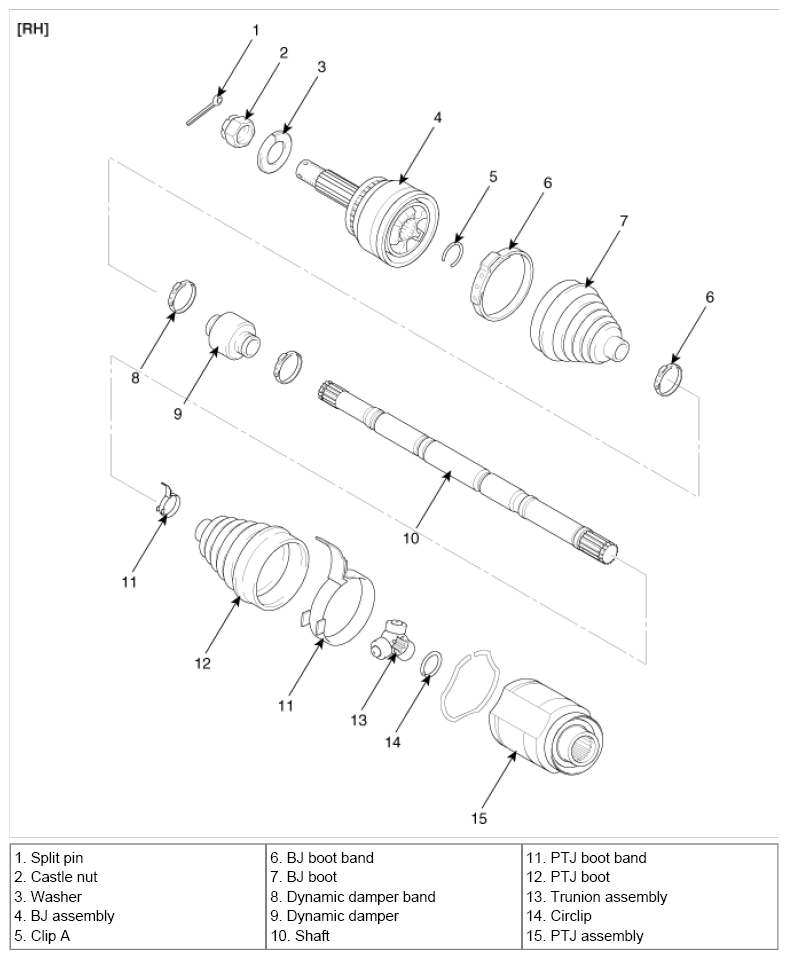

Fig 2: Identifying Front Driveshaft Components Location (RH)

Courtesy of KIA MOTORS AMERICA, INC.
