Repair procedures: Inspection

Operate the auto light switch, then check for continuity between terminals of multi-function switch connector.

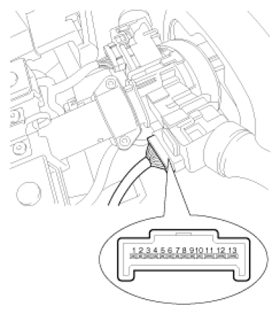

Fig 1: Identifying Auto Light Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

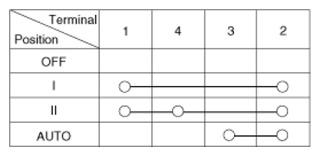

Fig 2: Auto Light Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
