Repair Procedures: Installation

Install the backing plate (A).

Fig 1: Backing Plate
Courtesy of KIA MOTORS AMERICA, INC.

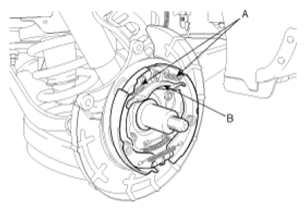

Connect the parking brake wire (B) to the brake shoe (A).

Fig 2: Parking Brake Wire & Brake Shoe
Courtesy of KIA MOTORS AMERICA, INC.

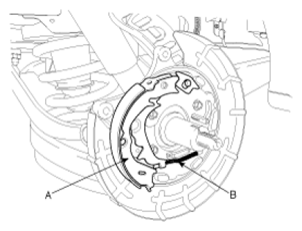

Install the shoe hold down pin and spring (A) to hold the brake shoe (B).

Fig 3: Shoe Hold Down Pin & Spring
Courtesy of KIA MOTORS AMERICA, INC.

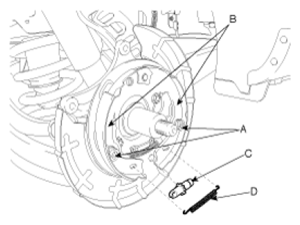

Install the adjuster assembly (B) and the lower return spring (C).
Install the upper return spring (A) and strut (B).

Fig 4: Adjuster, Upper/Lower Return Springs
Courtesy of KIA MOTORS AMERICA, INC.
Grease where is necessary.
Install the rear hubs.
Install the hub nut (A). After installation, lock the nut to the spindle as shown in the illustration.

Fig 5: Locking Hub Nut
Courtesy of KIA MOTORS AMERICA, INC.

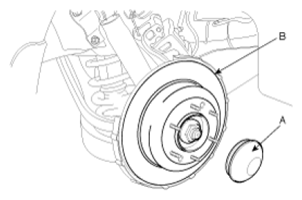

Install the hub cap (A) and the disc (B).

Fig 6: Hub Cap & Disc
Courtesy of KIA MOTORS AMERICA, INC.
Install the rear wheels and tires from the rear hubs.
Tighten the parking brake adjusting nut.
Install the parking brake wire and the pedal assembly.
