Variant Coding

  1. Check for improper installation of EMS/TCU/ESC.
  2. Connect scantool to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "OFF".
  4. Perform variant coding. (Fig 1).
  5. Disconnect scantool.
  6. Ignition "OFF" and then ignition "ON". Go to COMPONENT INSPECTION  Procedure.

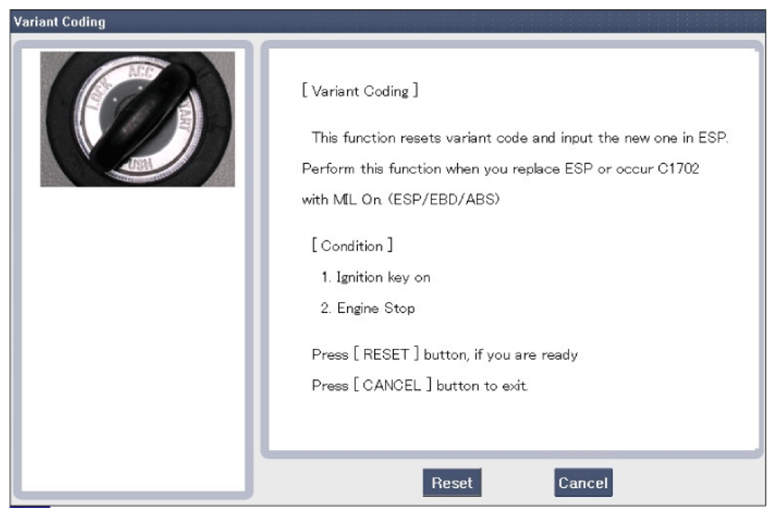

    Fig 1: Scantool Display - Variant Coding
    G07391247Courtesy of KIA MOTORS AMERICA, INC.
