Component (1)

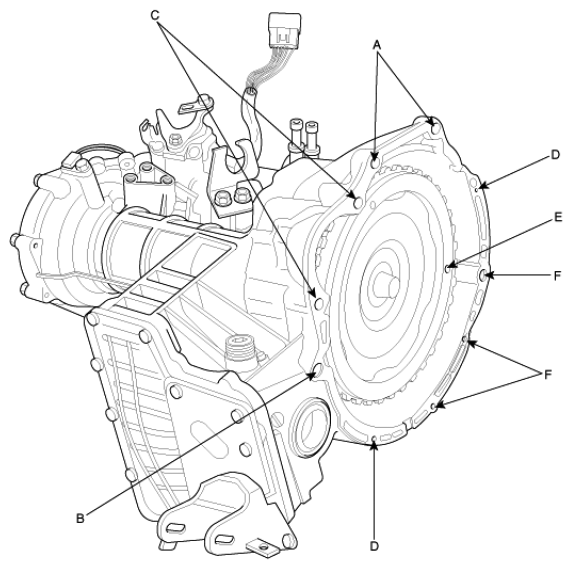

Fig 1: Identifying Automatic Transaxle Components

Courtesy of KIA MOTORS AMERICA, INC.

TIGHTENING TORQUE REFERENCE CHART

	Tightening torque (Nm (kgf.cm, lb-ft))	O.D x Length [mm (in.)]	Identification Mark
A	60~80 (600~800, 43~58)	[7] 12 x 40 (0.47 x 1, 57)	[7] A X B
B	43~55 (430~550, 32~41)	[7] 10 x 70 (0.39 x 2.761)
C	27~34 (270~340, 19~24)	[7] 10 x 55 (0.39 x 2.17)
D	8~10 (80~100, 6~71	[7] 6 x 10 (0.24 x 0.39)
E	46~53 (460~530, 34~39)	[7] 10 x 11 (0.39 x 0.43)

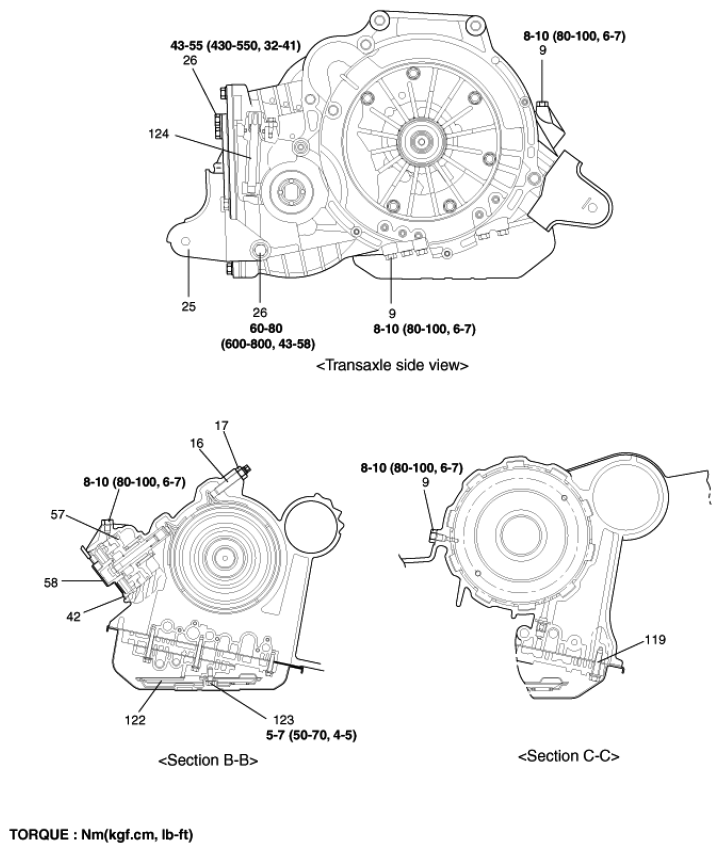

Fig 2: Identifying Automatic Transaxle Components And Tightening Torque (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

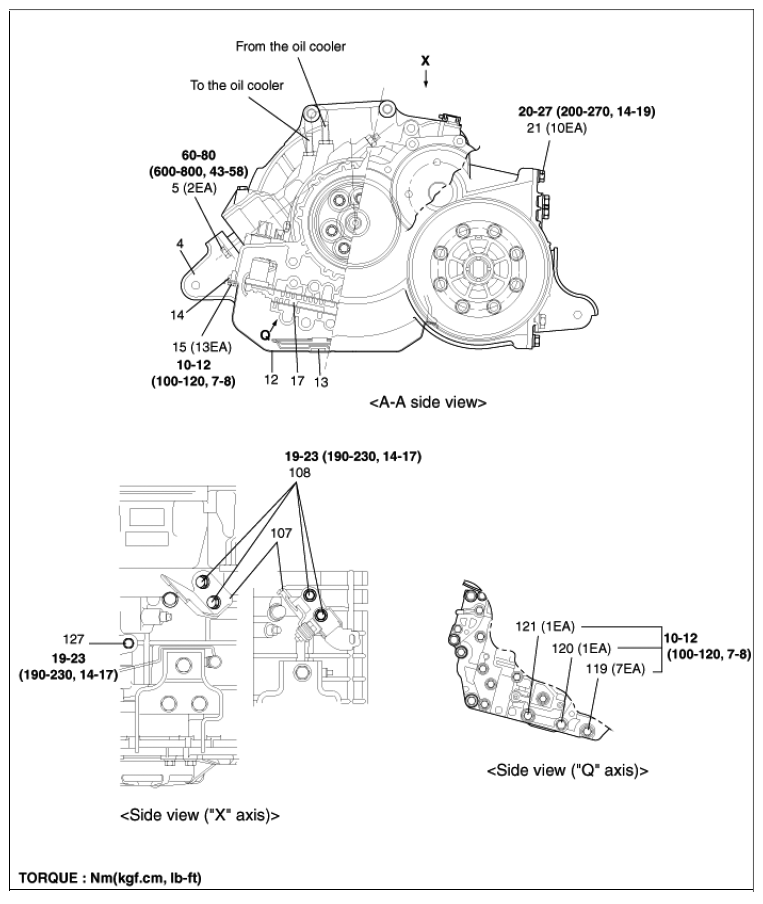

Fig 3: Identifying Automatic Transaxle Components And Tightening Torque (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

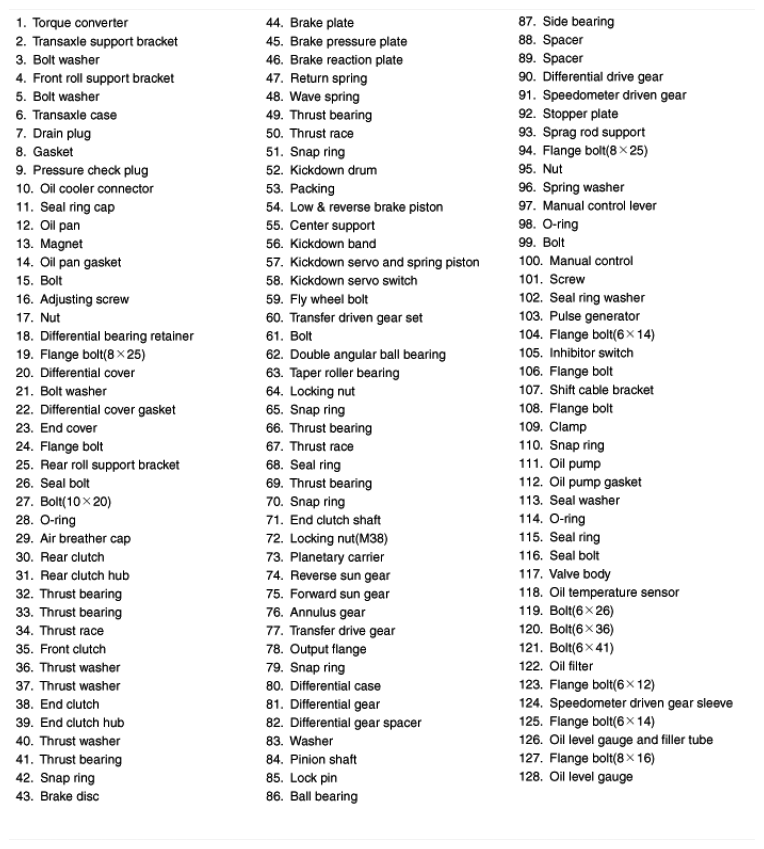

Fig 4: Identifying Automatic Transaxle Components And Tightening Torque (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

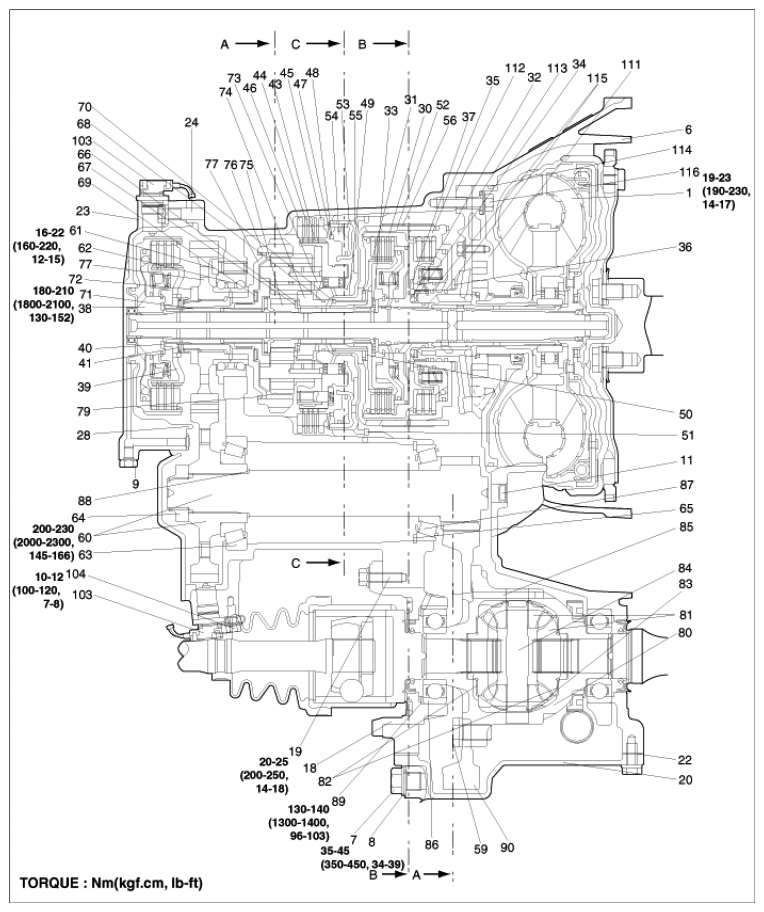

Fig 5: Identifying Automatic Transaxle Components And Tightening Torque (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

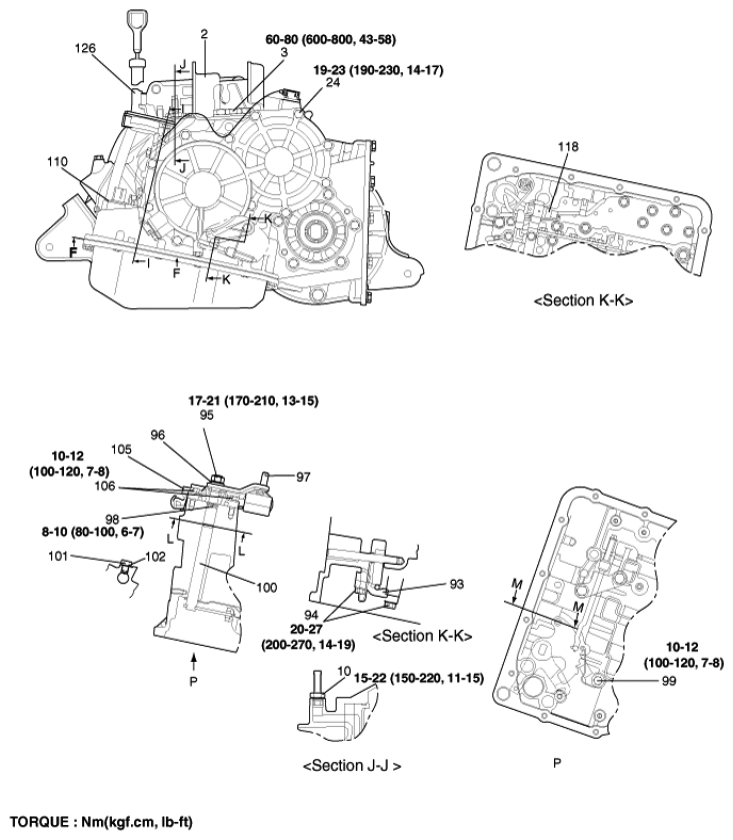

Fig 6: Identifying Automatic Transaxle Components And Tightening Torque (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
