Components (1)

WARNING: This page is about a different variant/trim than selected.

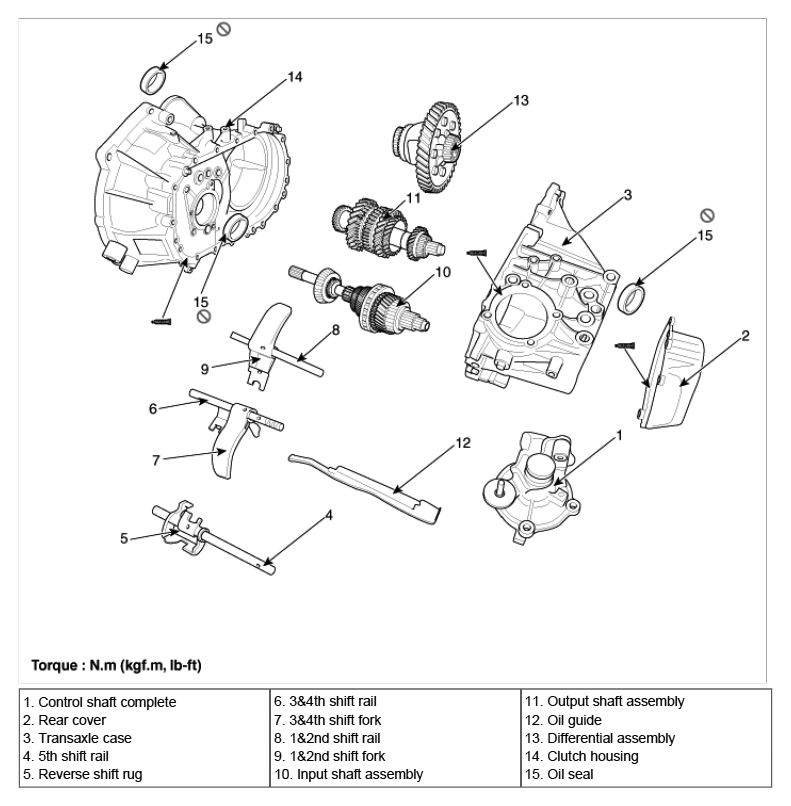

Fig 1: Manual Transaxle Replacement Components With Torque Specifications (1 Of 2)
G06828834Courtesy of KIA MOTORS AMERICA, INC.
