Home >> Kia >> 2011 >> Rio Base >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch System >> Clutch Cover And Disc >> Components and Components Location >> Components

Components and Components Location: Components

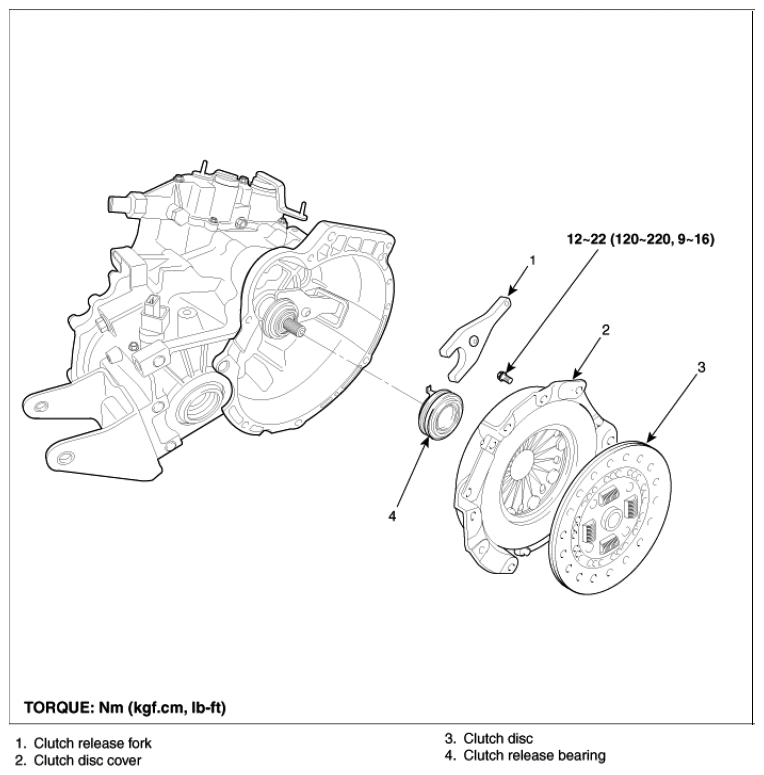

Fig 1: Clutch Cover And Disc Replacement Components With Torque Specifications

G06828795

Courtesy of KIA MOTORS AMERICA, INC.
