Schematic Diagram

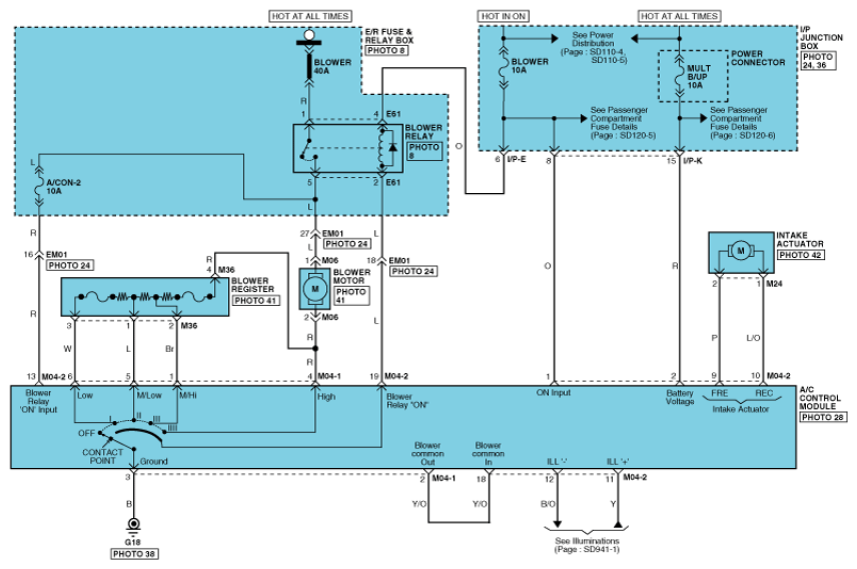

Fig 1: Control Panel Schematic Diagram (1 Of 2)

G06829845

Courtesy of KIA MOTORS AMERICA, INC.

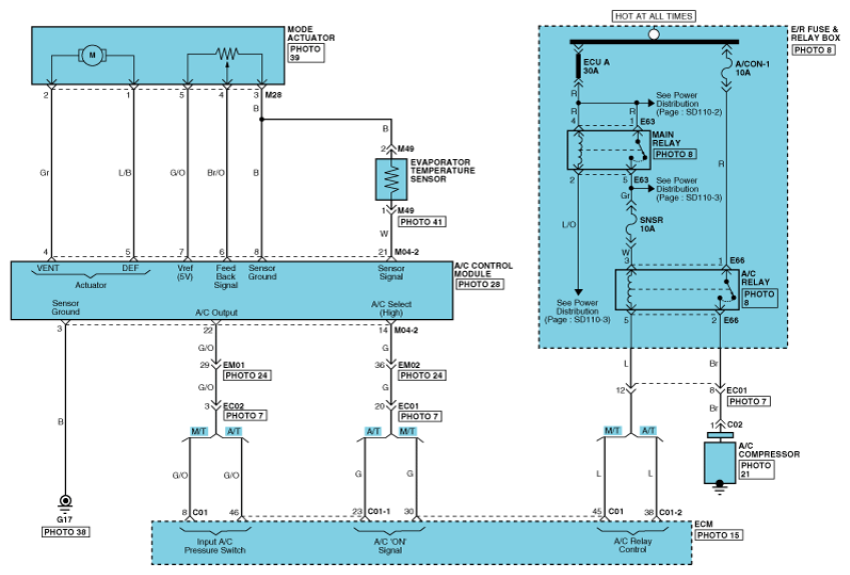

Fig 2: Control Panel Schematic Diagram (2 Of 2)

G06829846

Courtesy of KIA MOTORS AMERICA, INC.
