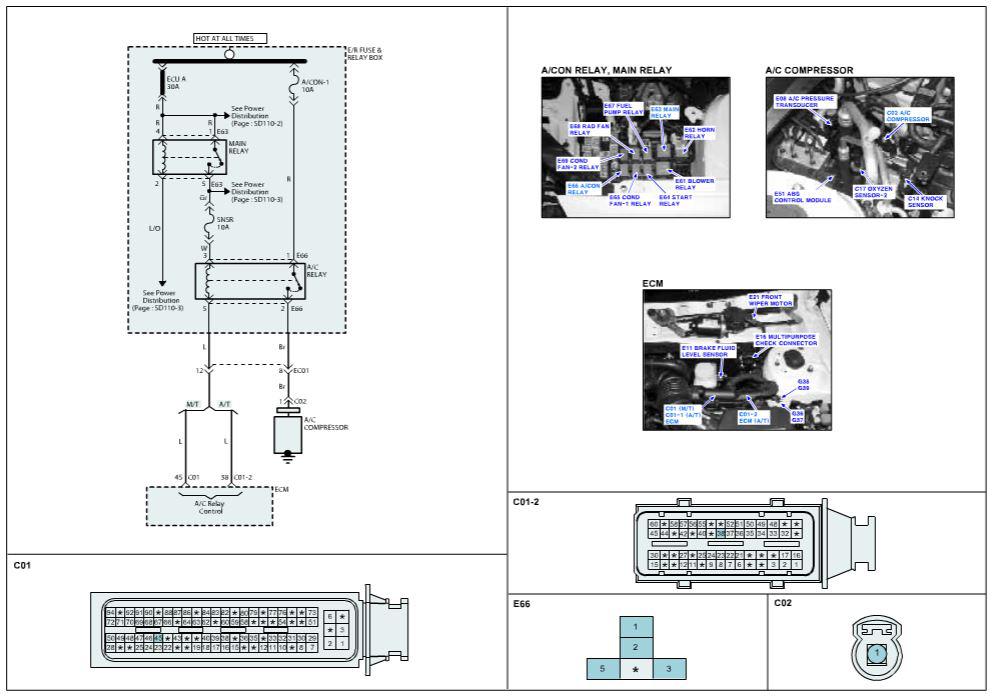

Home >> Kia >> 2011 >> Rio Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC P0645: AC Clutch Relay Control Circuit >> General Information >> Schematic Diagram
