FR terminal Circuit Inspection

  1. With ignition OFF, disconnect alternator connector.
  2. IG KEY "ON" & ENG "OFF".
  3. Measure voltage between FR terminal of the alternator harness connector and chassis ground.

    4. Specification :  Approx. 9~11V

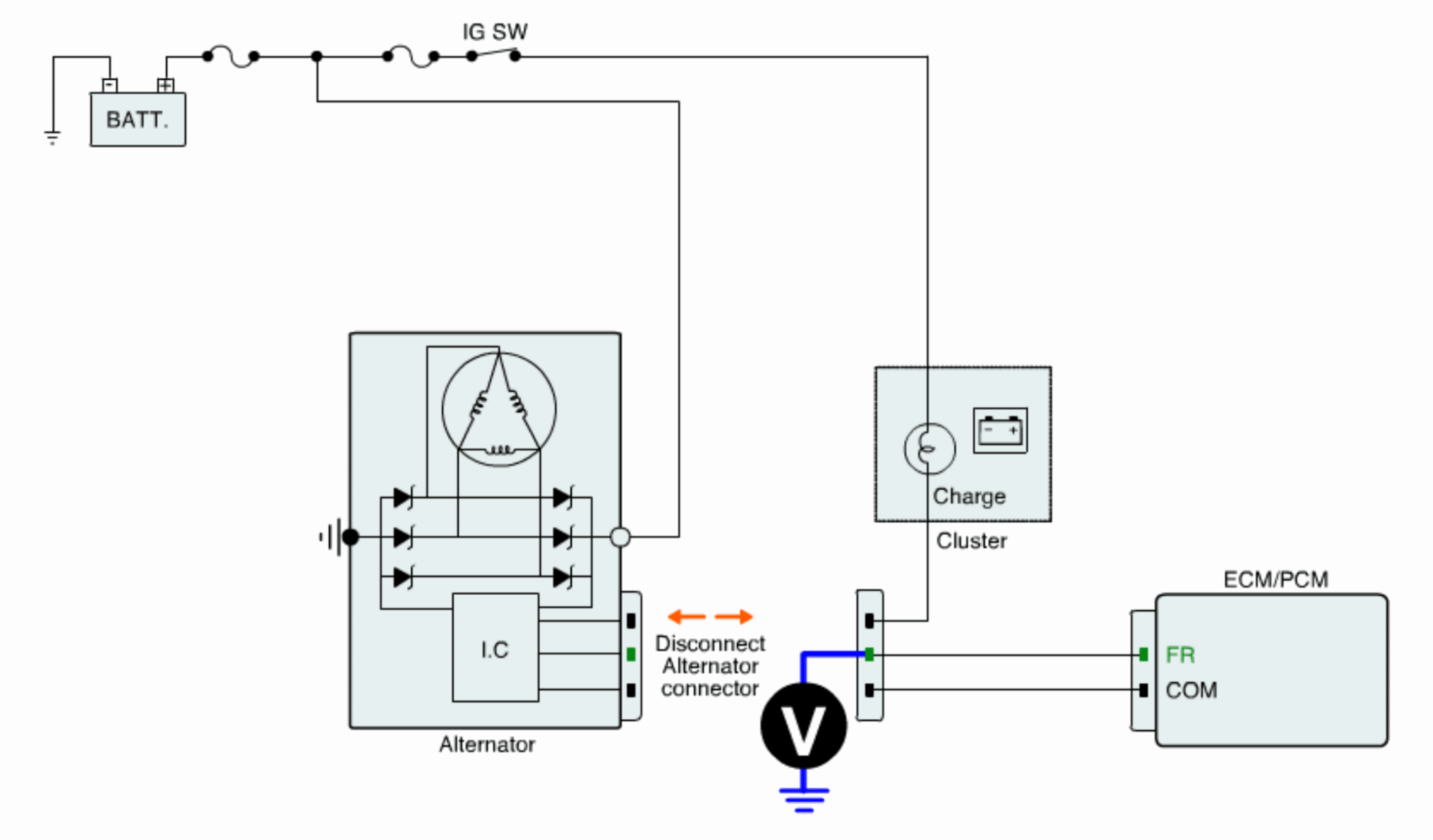

    Fig 1: Measuring Voltage Between FR Terminal Of The Alternator Harness Connector And Chassis Ground
    G00522394Courtesy of KIA MOTORS AMERICA, INC.

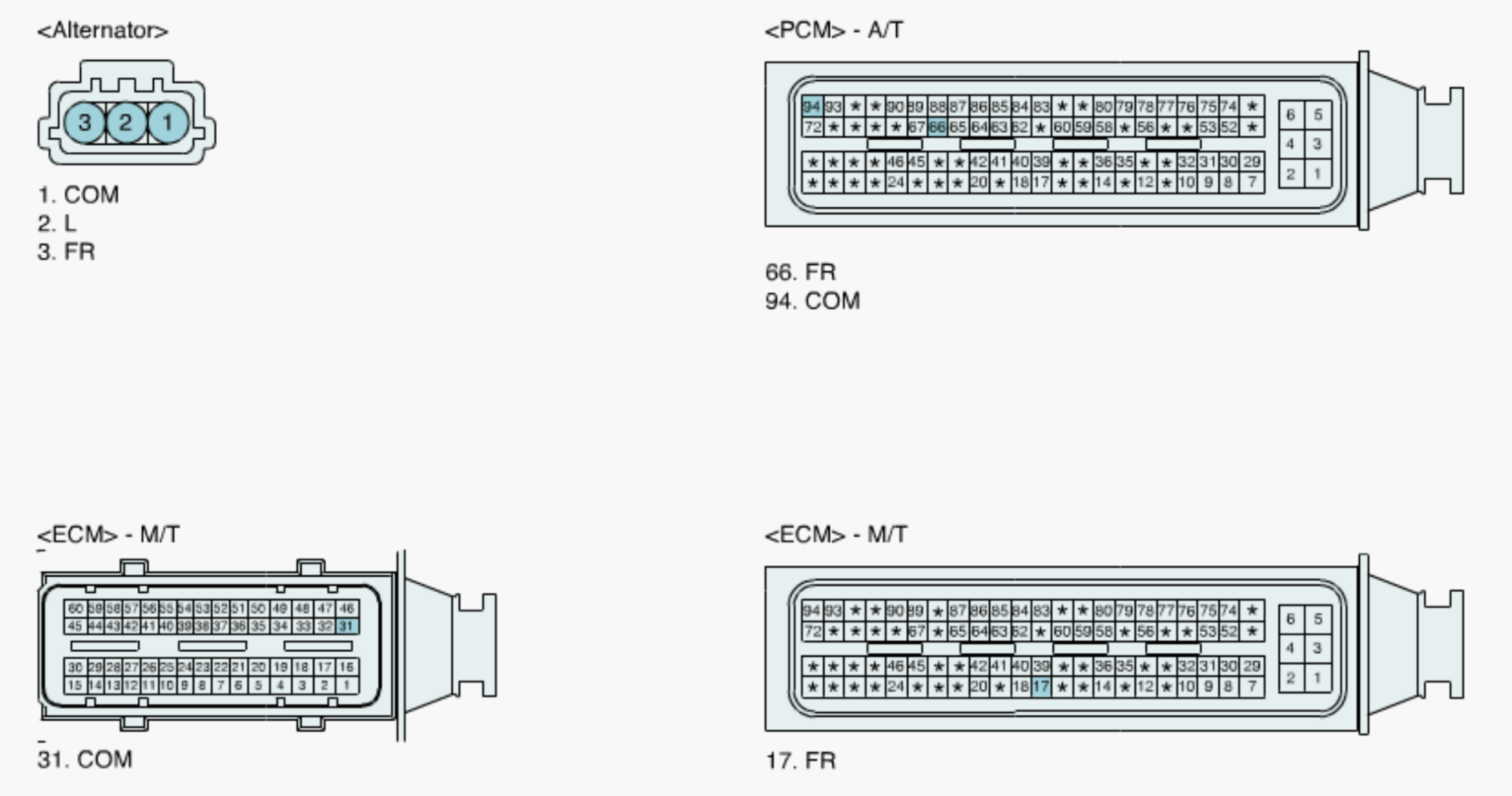

    Fig 2: Identifying Alternator Harness Connector End View
    G00522395Courtesy of KIA MOTORS AMERICA, INC.
  4. Is voltage within the specification?

    YES

    Go to "C terminal Circuit Inspection" procedure.

    NO

    Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR
