C terminal Circuit Inspection

  1. With ignition OFF, disconnect alternator connector.
  2. IG KEY "ON" & ENG "OFF".
  3. Measure voltage between C terminal of the alternator harness connector and chassis ground.

    4. Specification :  3.6V

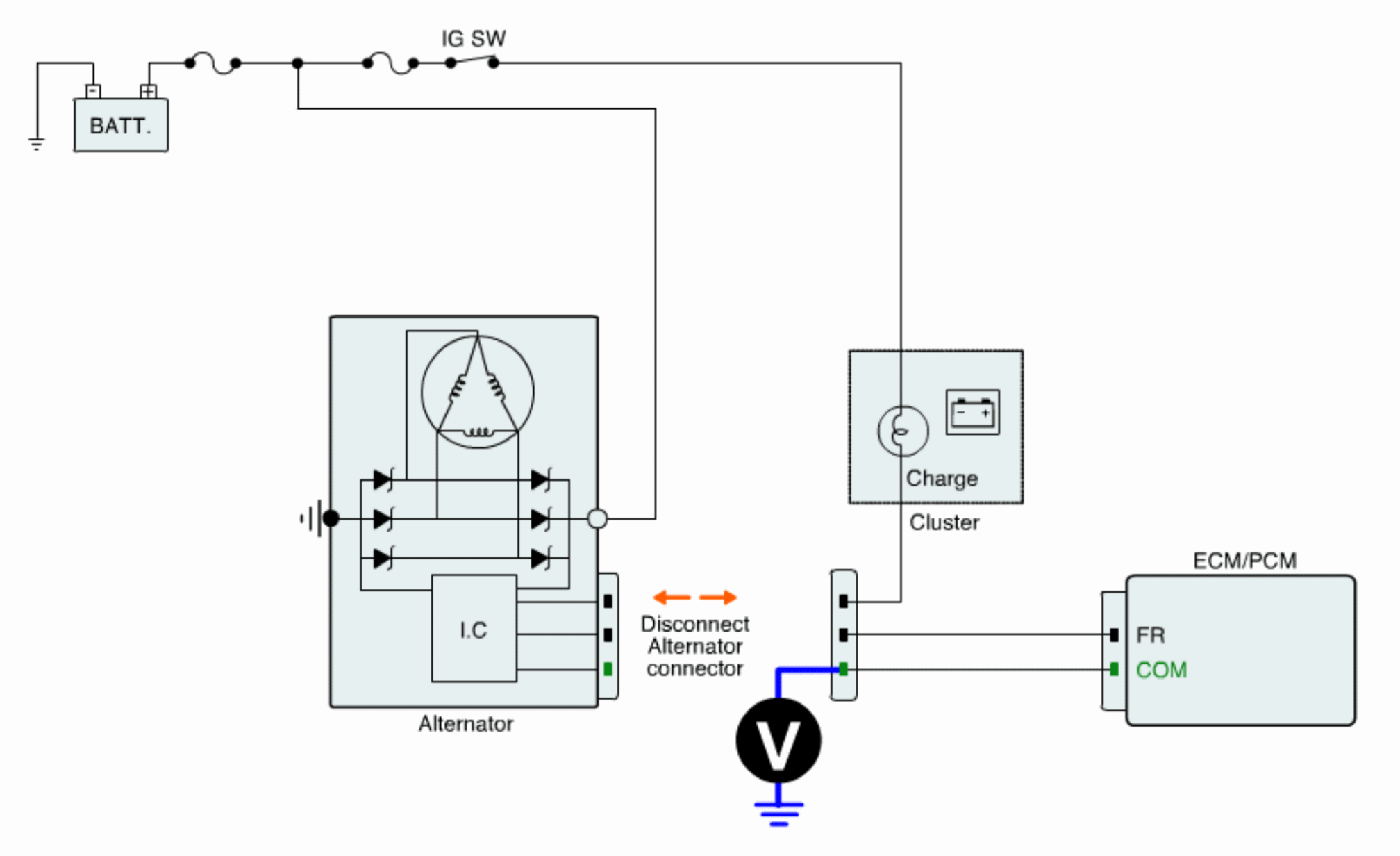

    Fig 1: Measuring Voltage Between C Terminal Of The Alternator Harness Connector And Chassis Ground
    G00522396Courtesy of KIA MOTORS AMERICA, INC.

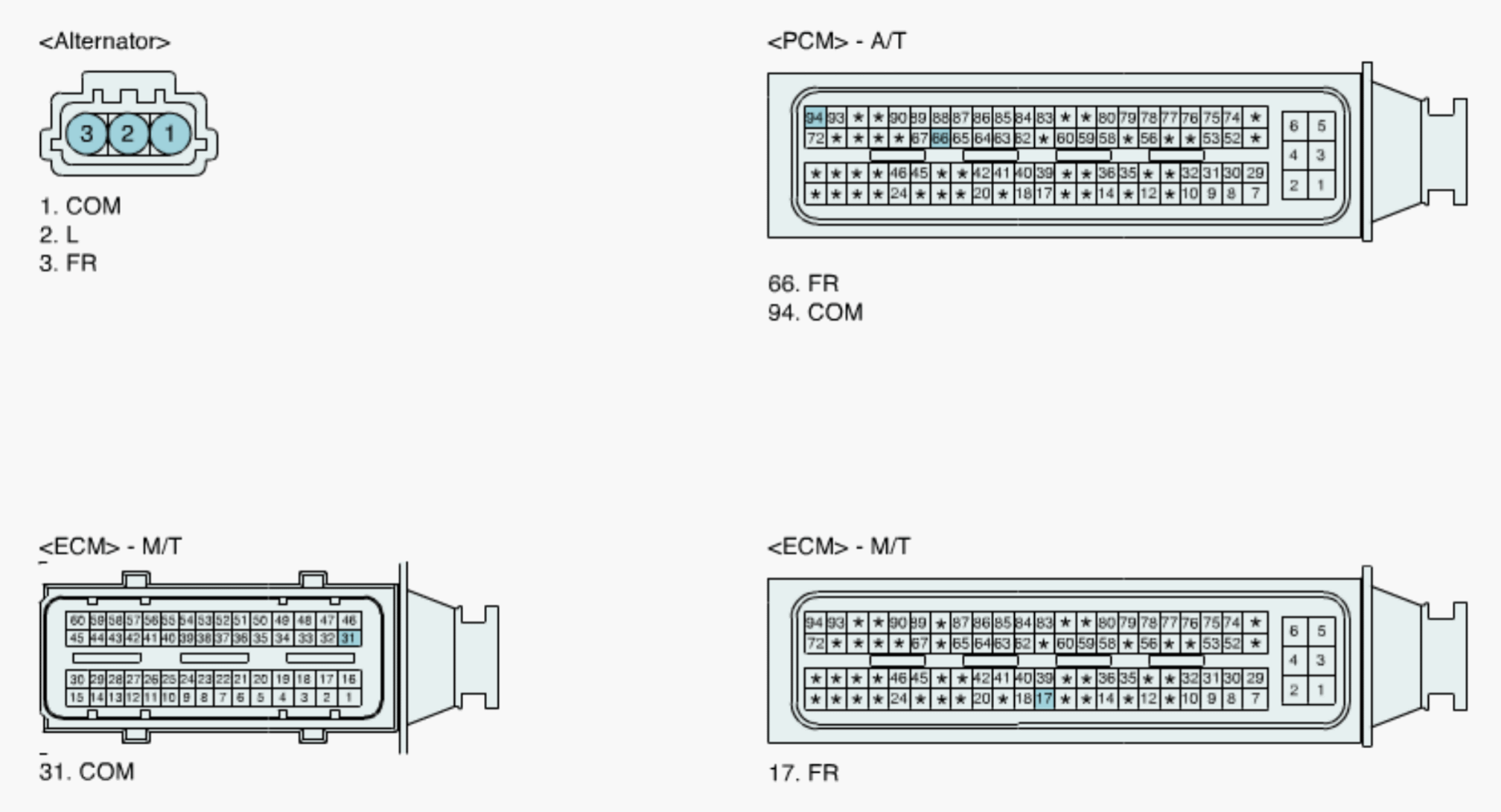

    Fig 2: Identifying Alternator Harness Connector End View
    G00522397Courtesy of KIA MOTORS AMERICA, INC.
  4. Is voltage within the specification?

    YES

    Go to "Component inspection" procedure.

    NO

    Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR  procedure.
