Control Circuit Inspection

IG "OFF".
Disconnect PCM harness connector.
IG "ON".
Measure the voltage between terminal 53/C01-1 (94/C01) of PCM (ECM) harness connector and ground.
1. Specification : B+

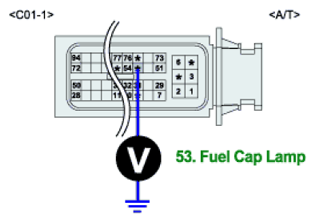

  Fig 1: Measuring Voltage Between Terminal 53/C01-1 Of PCM (ECM) Harness Connector And Ground
  Courtesy of KIA MOTORS AMERICA, INC.

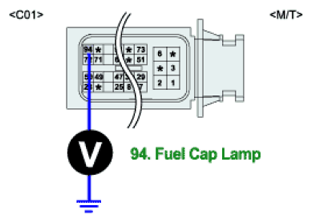

  Fig 2: Measuring Voltage Between Terminal 94/C01 Of PCM (ECM) Harness Connector And Ground
  Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specification?
YES
1. Go to "COMPONENT INSPECTION " procedure.
NO
1. Check the bulb and repair as necessary.
2. Repair Open or Short in control circuit and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
