Component Inspection

1. Specification : Fuel filler cap lamp ON.

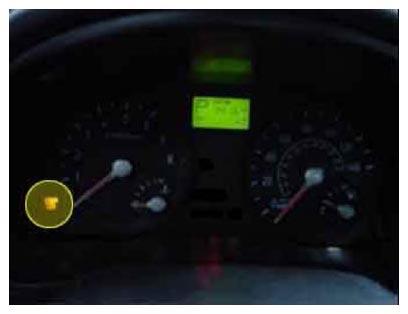

   Fig 1: Identifying Fuel Filler Cap Lamp Location

   Courtesy of KIA MOTORS AMERICA, INC.

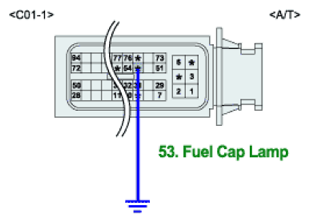

   Fig 2: Identifying 53/C01-1 Of PCM (ECM) Harness Connector Short To Ground

   Courtesy of KIA MOTORS AMERICA, INC.

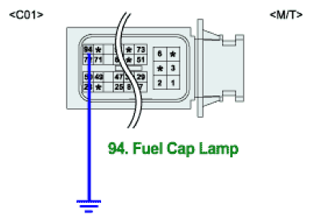

   Fig 3: Identifying 94/C01 Of PCM (ECM) Harness Connector Short To Ground

   Courtesy of KIA MOTORS AMERICA, INC.

YES

1. Substitute with a known - good PCM and check for proper operation.

   If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   CAUTION: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM.
   Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others

NO

1. Substitute with a known - good instrument cluster and check for proper operation.

   If the problem is corrected, replace instrument cluster and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
