Component Inspection

1. Specification :
   SPECIFICATION CHART



   Terminal	Continuity
   30~87	NO
   85~86	YES (Approx. 70Ω~120Ω)

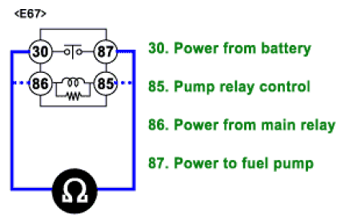

   Fig 1: Measuring Resistance Between Terminal 85 And 86 Of Fuel Pump Relay Component Side

   Courtesy of KIA MOTORS AMERICA, INC.

YES

1. Substitute with a known - good ECM and check for proper operation.

   If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   CAUTION: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM.
   Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others

NO

1. Substitute with a known - good Fuel pump relay and check for proper operation.

   If the problem is corrected, replace Fuel pump relay and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
