Monitor Scantool Data

  1. Connect scantool to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Monitor "ECTS" parameter on scantool.

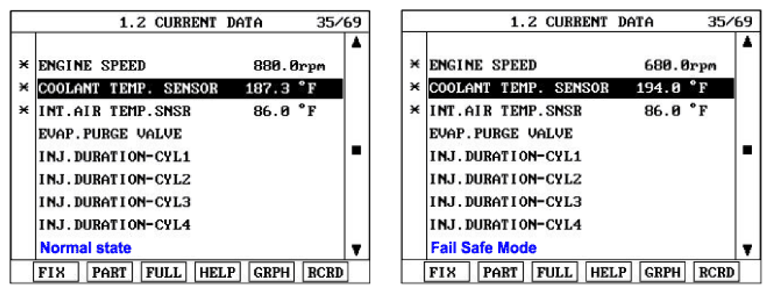

    Fig 1: Monitoring ECTS Parameter On Scantool
    G06830459Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "ECTS" parameter displayed correctly?

    YES

    1. Case1] This DTC can caused by Intake Air Temperature Sensor (IATS). So, if there is (are) DTC (s) of IATS, refer to DTC P0111: Intake Air Temperature Sensor1 Circuit Range Performance .
    2. Case2] Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    1. Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
