Component Inspection

  1. Check OCV
    1. Connect scantool to Data Link Connector (DLC).
    2. Key "ON".
    3. Perform "Actuation Test" for OCV.

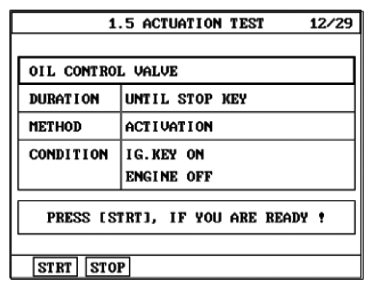

      Fig 1: Scantool Display - Actuation Test For OCV
      G06830325Courtesy of KIA MOTORS AMERICA, INC.
    4. Does the OCV work normally (Check clicking sound)?

      YES

      1. Substitute with a known-good CVVT and check for proper operation. If the problem is corrected, replace CVVT and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO

      1. Substitute with a known-good OCV and check for proper operation. If the problem is corrected, replace OCV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
