Package Tray

  1. Remove the package trim.
    NOTE:
    • Put on gloves to protect your hands.
    • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
    • Take care not to bend or scratch the trim and panels.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.

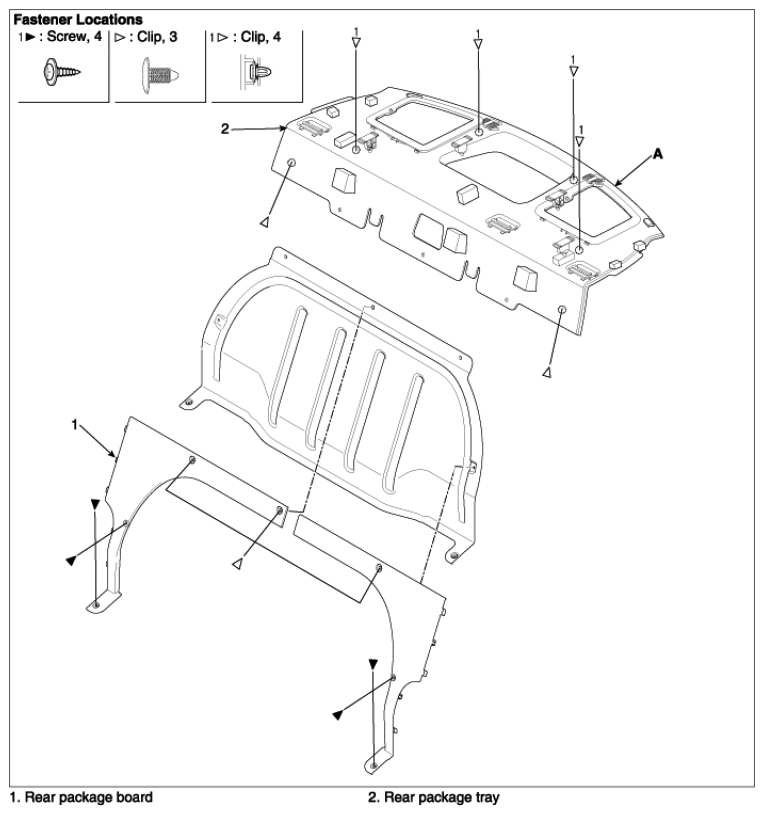

      Fig 1: Identifying Rear Package Board And Rear Package Tray With Screws And Clips
      G06829496Courtesy of KIA MOTORS AMERICA, INC.
