Components and Components Location: Components

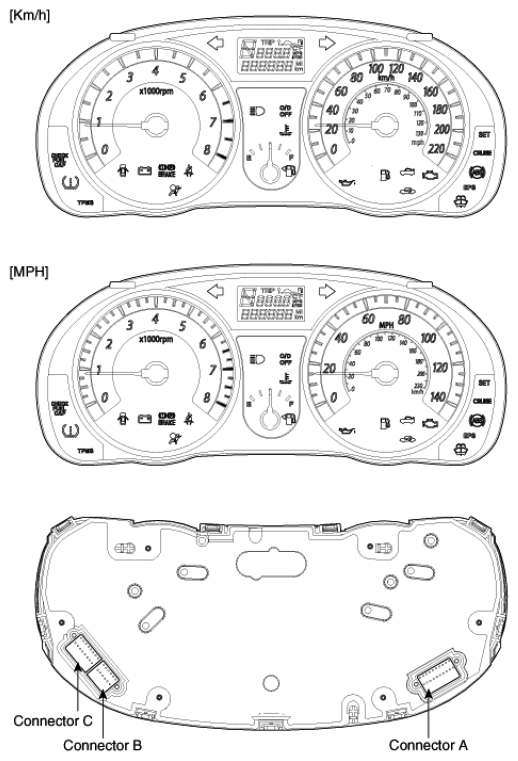

Fig 1: Identifying Instrument Cluster And Connectors

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Instrument Cluster Connectors (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Instrument Cluster Connectors (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

INSTRUMENT CLUSTER CONNECTOR PIN REFERENCE CHART

Pin No.	Connector A	Connector B	Connector C
1	SET	Pressure Oil	Ambient temp
2	Cruise	Airbag Supply (+)	Temp Input
3	Fuel ground	Airbag Input	Fuel Input
4	Turn Left	Check Engine	Fuel Ground
5	Turn Right	AT-PWM	-
6	Illumination (+)	Alternator	-
7	Illumination (+)	Power Ground	Fuel Cap Open
8	Door Open	-	EPS
9	TPMS	Mode Switch	Fuel Injection
10	Tire Pressure	AT-P	Tacho Input/- (CAN)
11	Ignition (+)	AT-R	Speed Input
12	Signal Ground	AT-D	ABS/EBD
13	Battery +		Diagnosis
14	O/D Off		Mode Switch Ground
15	Parking Brake		AT-N / MT-R Input (CAN)
16	High Beam Ground		Water Separator
17	High Beam (+)
18	Trunk Lid Open
19	Seat Belt
20	Immobilizer
