Components and Components Location: Components

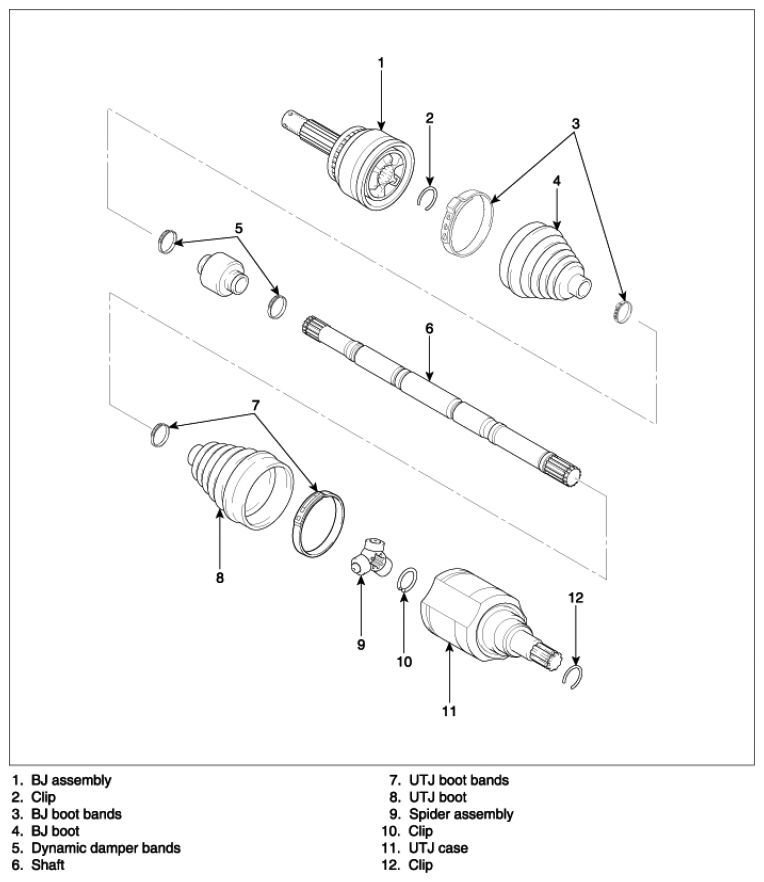

Fig 1: Identifying Front Driveshaft Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

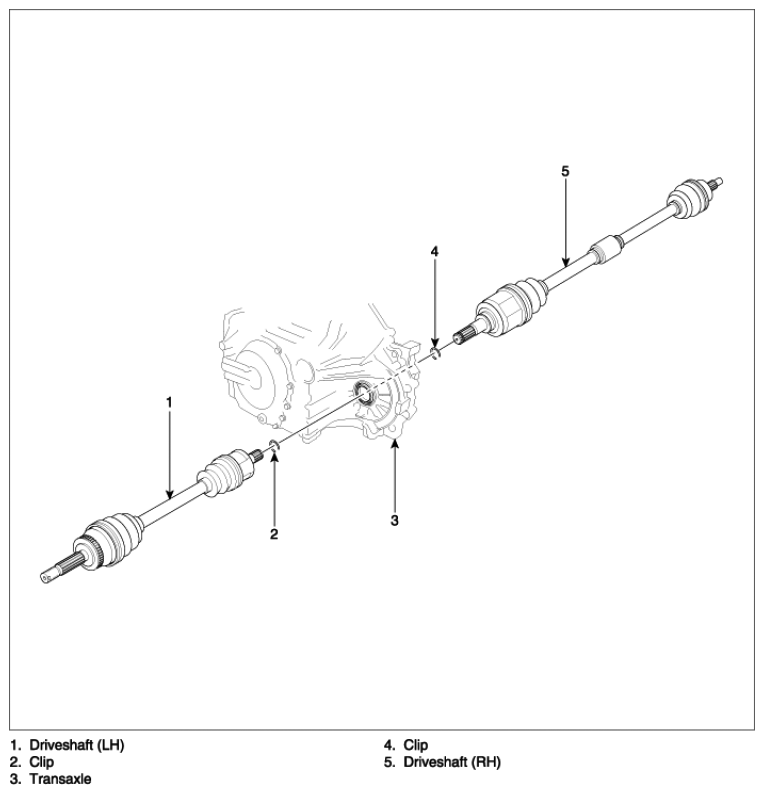

Fig 1: Identifying Front Driveshaft Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
