Standard Flow Of Diagnostic Troubleshooting

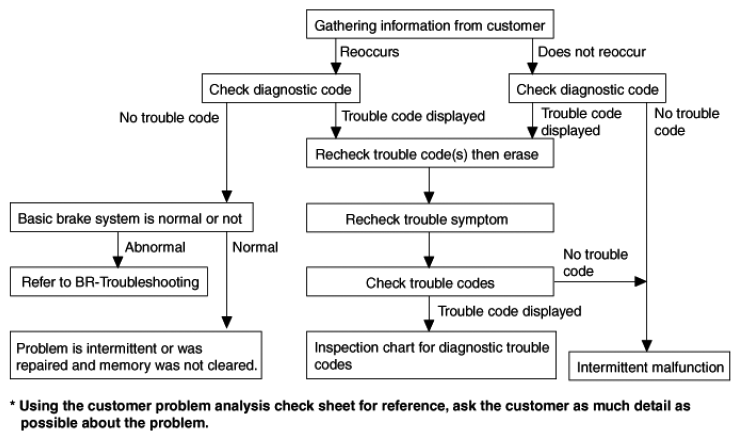

Fig 1: Standard Flow Of Diagnostic Troubleshooting Chart

G06829346

Courtesy of KIA MOTORS AMERICA, INC.
