Abs Circuit Diagram: Notes

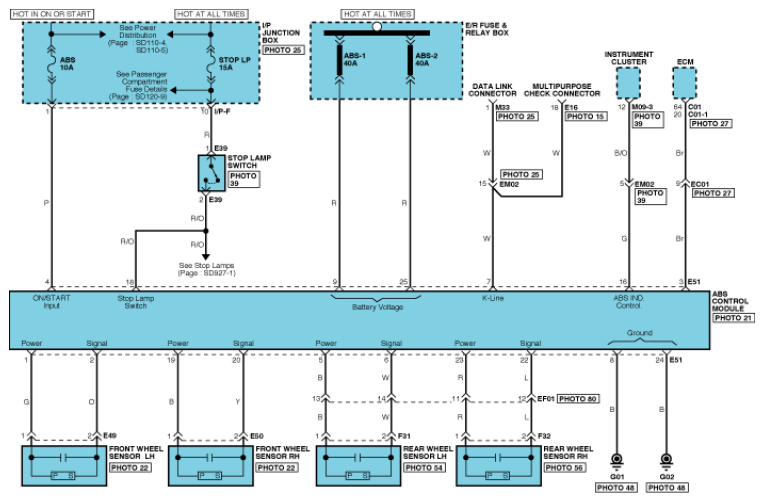

Fig 1: ABS Circuit Diagram

G06829336

Courtesy of KIA MOTORS AMERICA, INC.
