CKP Sensor & CMP Sensor Connector End Views

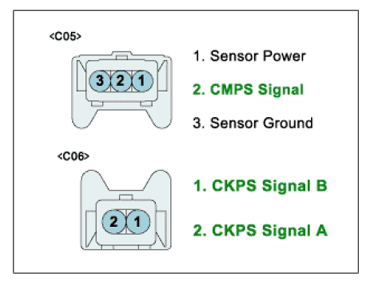

Fig 1: CKP Sensor & CMP Sensor Connector End Views

G06830339

Courtesy of KIA MOTORS AMERICA, INC.
