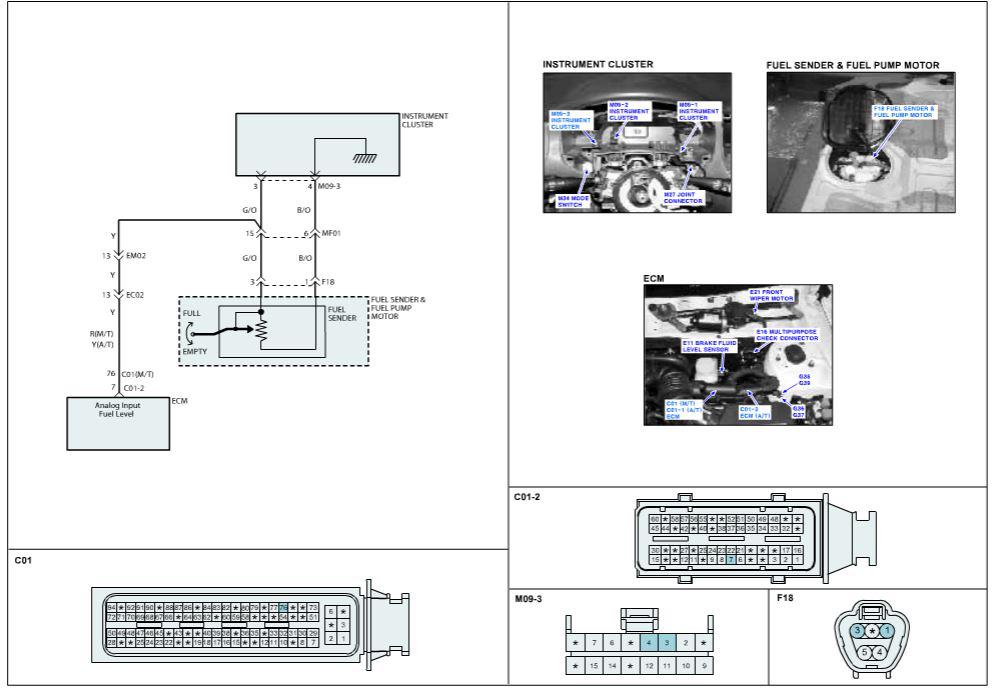

Home >> Kia >> 2011 >> Rio Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC P0462: Fuel Level Sensor A Circuit Low Input >> General Information >> Schematic Diagram
