Signal Circuit Inspection

  1. Key "OFF".
  2. Disconnect CKPS connector.
  3. Key "ON".
  4. Measure the voltage between terminal 1 of CKPS harness connector and chassis ground. Then, measure the voltage between terminal 2 of CKP harness connector and chassis ground.
    1. Specification : Approx 2.5V

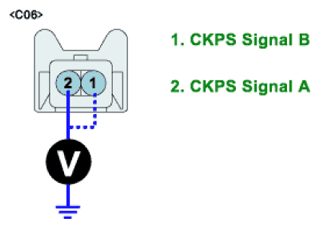

      Fig 1: Measuring Voltage Between Terminal 1 Of CKPS Harness Connector And Chassis Ground
      G06830781Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the measured voltage within specification?

    YES

    1. Go to "COMPONENT INSPECTION " procedure.

    NO

    1. Repair Open or Short in signal circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
