Component Inspection

Check TPS.

Ignition "OFF"
Disconnect TPS connector

Measure resistance terminal 2 and 3 of TPS Component side connector.

Specification :

ITEM SPECIFICATION CHART

ITEM	Specification
TPS Resistance (kΩ)	2kΩ ± 20% at 20°C (68°F)

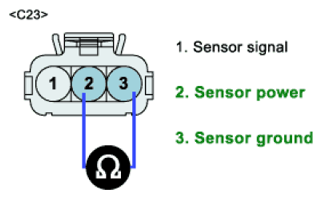

Fig 1: Measuring Resistance Terminal 2 And 3 Of TPS Component Side Connector

G06830514

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured resistance within specification?
YES
1. Go to " 2 Check ECM" as below
NO
1. Check TPS for contamination, deterioration, or damage. Substitute with a known-good TPS and check for proper operation. If the problem is corrected, replace TPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure

Check ECM
1. Key "OFF".
2. Connect the scantool and select "Simulation SCAN" in the menu.
3. Connect channel A of scantool with terminal 1 of TPS harness connector, and key "ON".
4. Simulate voltage at signal line.

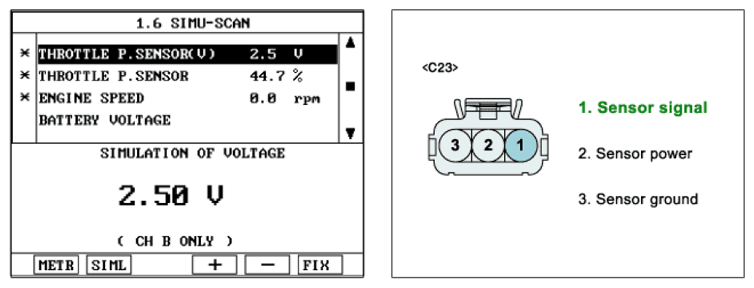

  Fig 2: Scantool Display - Throttle Position Sensor Voltage
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is TPS signal value changed according to simulation voltage?
  YES
  1. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  1. Substitute with a known - good ECM and check for proper operation.
    If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    CAUTION: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM.
    Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others
