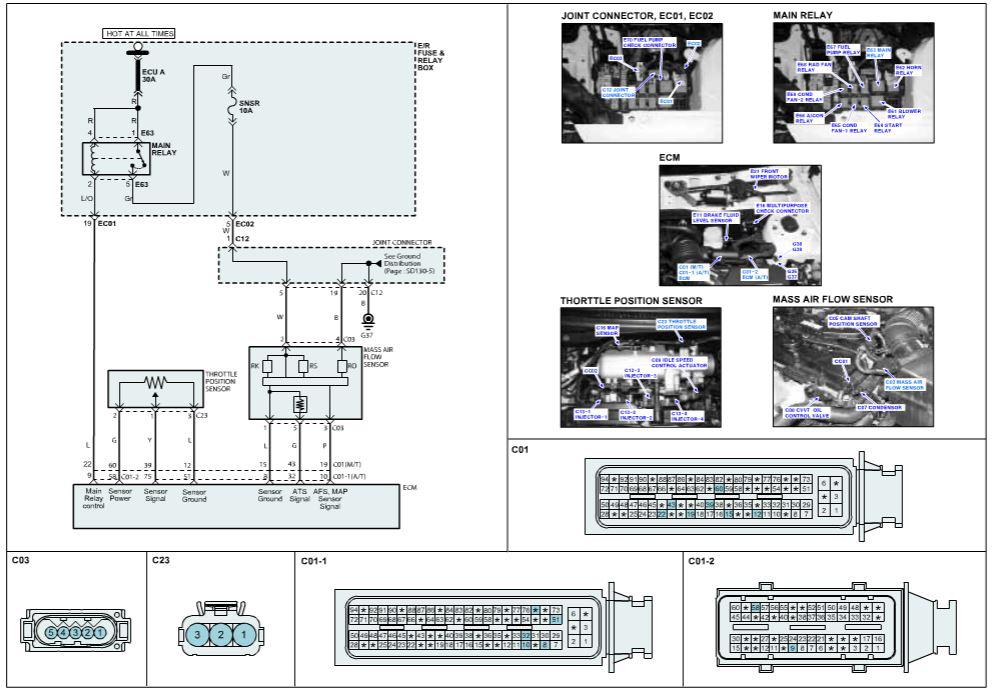

Home >> Kia >> 2011 >> Rio Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC P0123: Throttle/Pedal Position Sensor/Switch A Circuit High Input >> General Information >> Schematic Diagram
