Signal Circuit Inspection

  1. Key "OFF".
  2. Disconnect TPS connector.
  3. Key "ON".
  4. Measure the voltage between terminal 1 of TPS harness connector and chassis ground.
    1. Specification : Approx. 5V

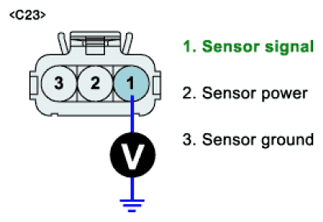

      Fig 1: Measuring Voltage Between Terminal 1 Of TPS Harness Connector And Chassis Ground
      G06830495Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the measured voltage within specification?

    YES

    1. Go to "COMPONENT INSPECTION " procedure.

    NO

    1. Repair Short to ground in signal circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
