Shift Lever Assembly Replacement

Remove the floor Interior console assembly. Refer to INTERIOR (CONSOLE) .

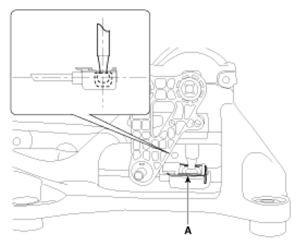

Remove the select cable snap pin (A) and the clip (B) from the select cable assembly.

Fig 1: Select Cable Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Select Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clip (A) from the shift cable.
CAUTION: Set securely.

Fig 3: Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly (B) after removing shift lever assembly installation bolt (A).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 4: Shift Lever Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
