Repair Procedures: Installation

Installation is the reverse of removal.
NOTE:
- Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
- Install the guide member (A) of the select cable (B).

  Fig 1: Guide Member & Select Cable
  Courtesy of KIA MOTORS AMERICA, INC.

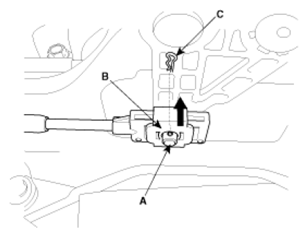

- Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).

  Fig 2: Slide Clip, Select Lever Pin & Snap Pin
  Courtesy of KIA MOTORS AMERICA, INC.
