Components And Components Location: Components

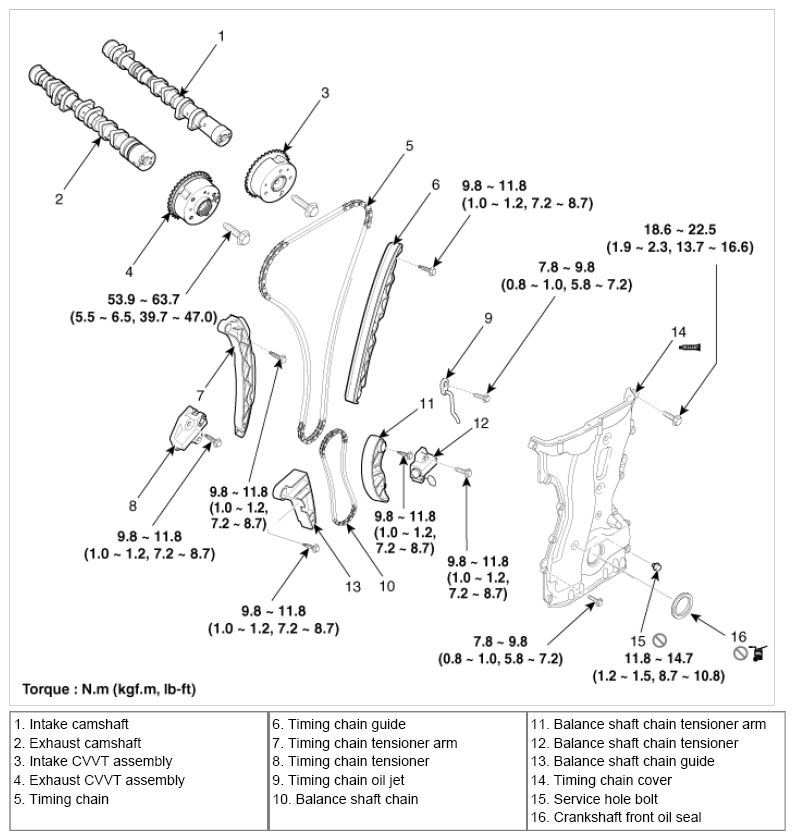

Fig 1: Exploded View Of Timing Chain Components With Torque Specifications
G07383743Courtesy of KIA MOTORS AMERICA, INC.
