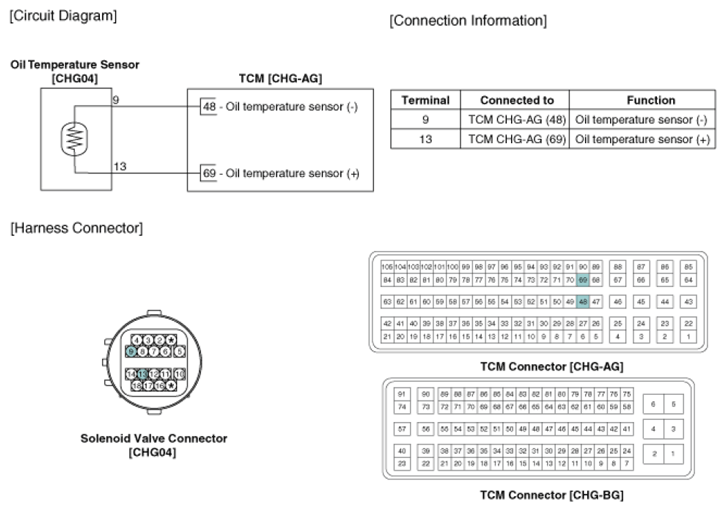

Home >> Kia >> 2011 >> Optima LX, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (A6MF2) - 2.4L >> Transaxle Oil Temperature Sensor >> Schematic Diagrams >> Circuit Diagram
