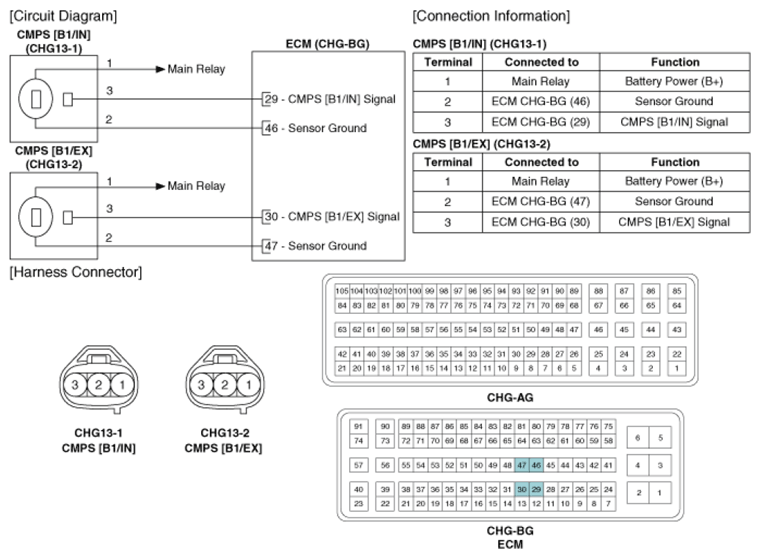

Home >> Kia >> 2011 >> Optima LX, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Camshaft Position Sensor (CMPS) >> Schematic Diagrams >> Circuit Diagram
