WCS Reset

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

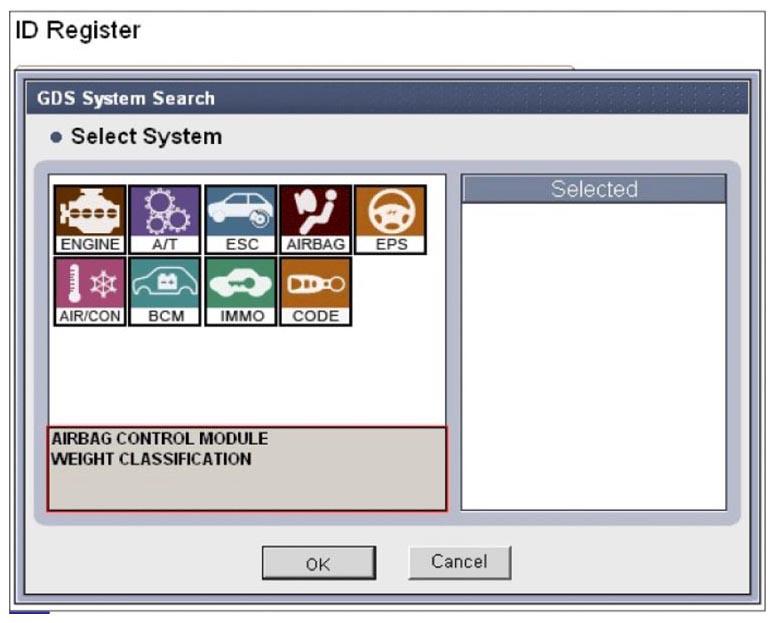

Fig 1: Screen Display - Select System
Courtesy of KIA MOTORS AMERICA, INC.

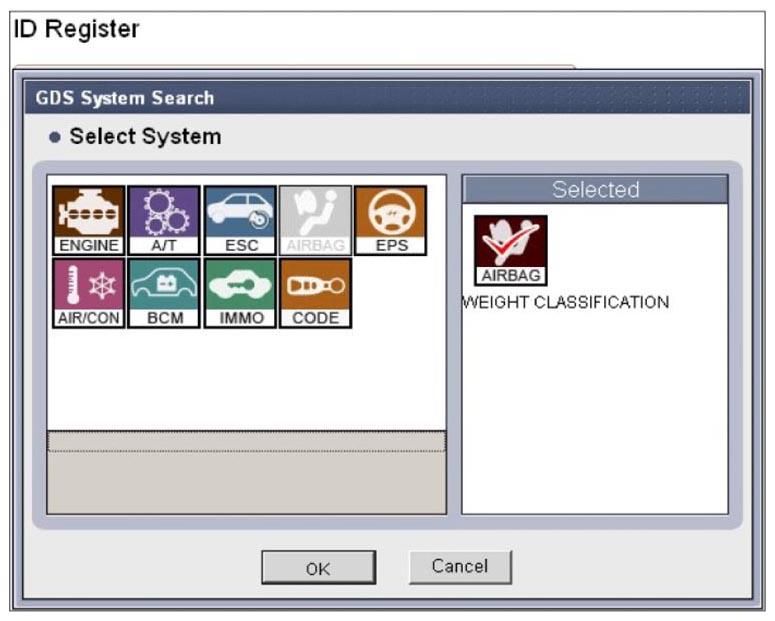

Fig 2: Screen Display - Weight Classification System Select
Courtesy of KIA MOTORS AMERICA, INC.

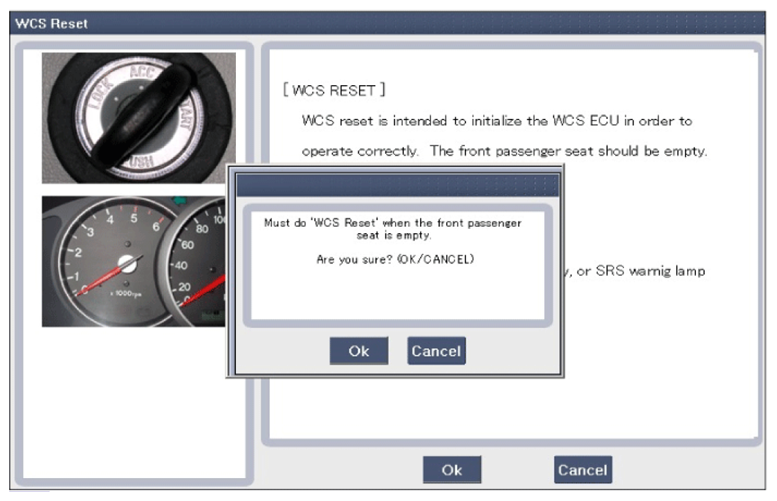

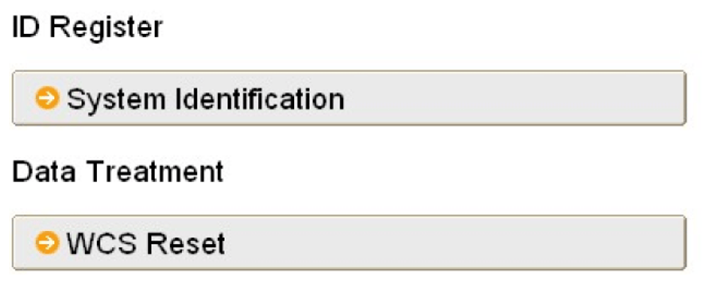

Fig 3: Screen Display - Weight Classification System Reset
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - EMPTY Data
Courtesy of KIA MOTORS AMERICA, INC.

Specification : Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

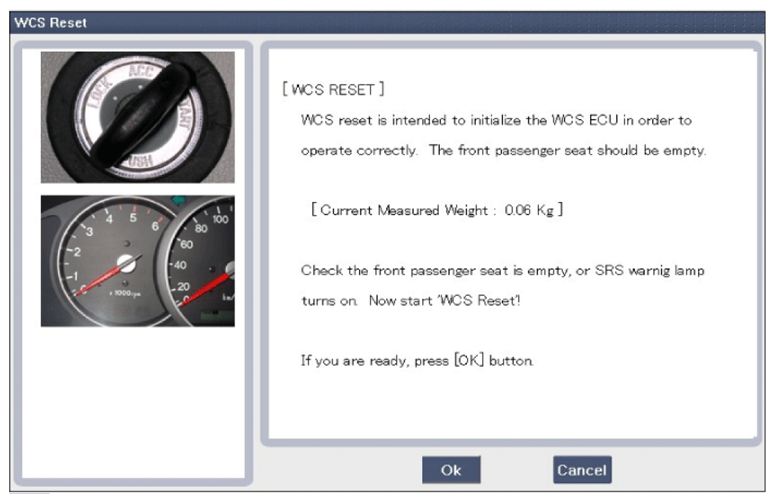

Fig 5: Screen Display - Passenger Seat Empty
Courtesy of KIA MOTORS AMERICA, INC.

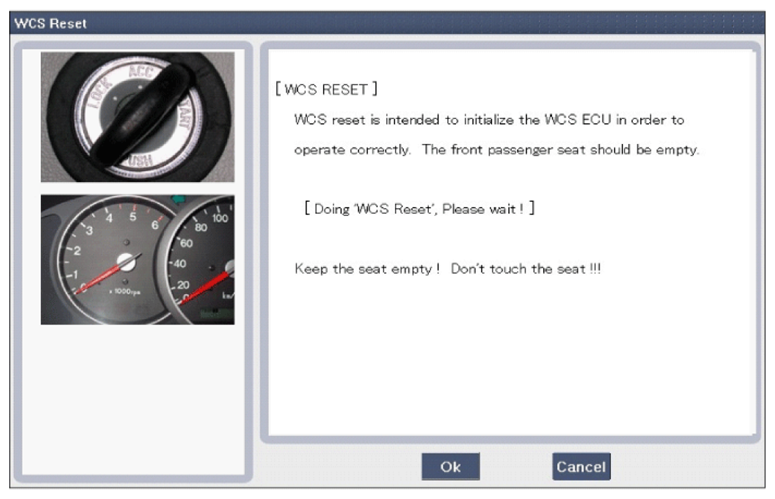

Fig 6: Screen Display - Doing WCS Reset
Courtesy of KIA MOTORS AMERICA, INC.
If the 'WCS Reset' operation is finished successfully, you will see the following screen.

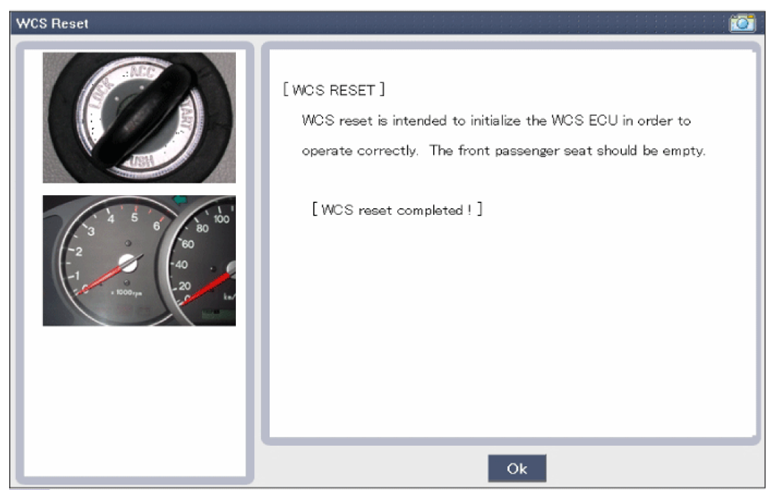

Fig 7: Screen Display - Weight Classification System Reset Completed
Courtesy of KIA MOTORS AMERICA, INC.

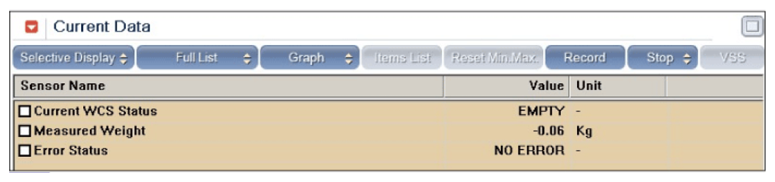

Fig 8: Screen Display - Current Data-IN ACU
Courtesy of KIA MOTORS AMERICA, INC.

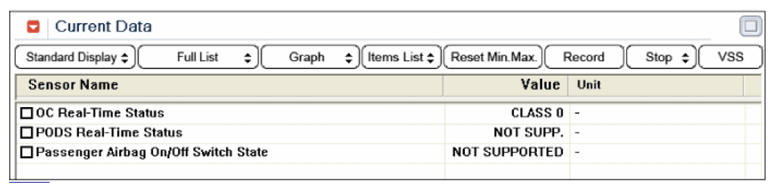

Fig 9: Screen Display - Current Data-IN WCS
Courtesy of KIA MOTORS AMERICA, INC.
Is the displayed parameter the same as the above figure?
YES
- WCS reset is performed correctly
- Go to VERIFICATION OF VEHICLE REPAIR procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
