Components and Components Location: Components

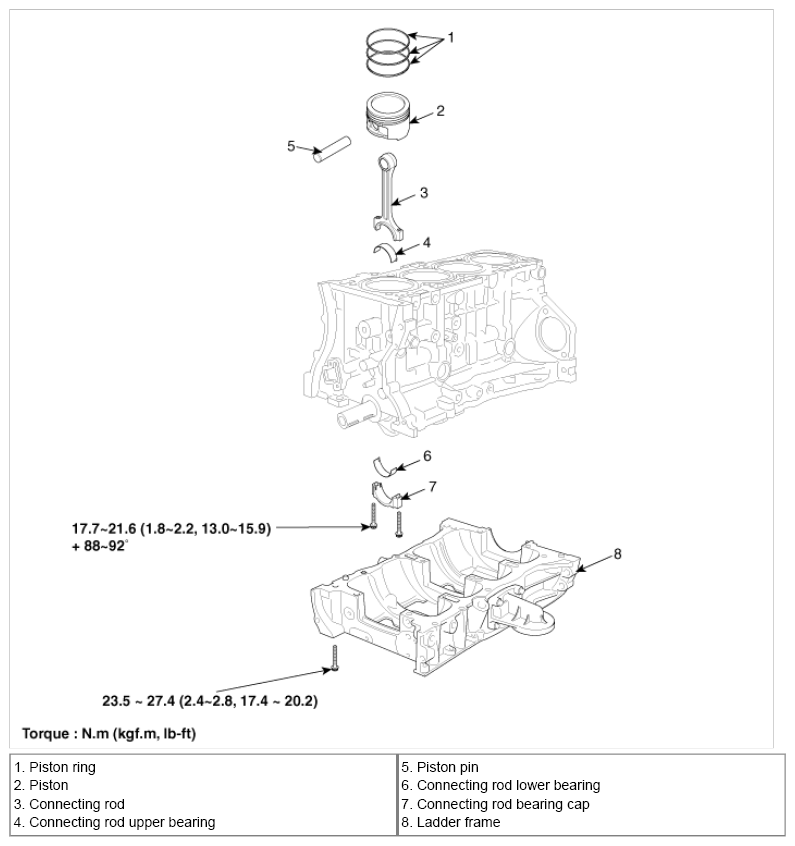

Fig 1: Exploded View Of Cylinder Block With Torque Specifications (1 Of 2)
G07367544Courtesy of KIA MOTORS AMERICA, INC.

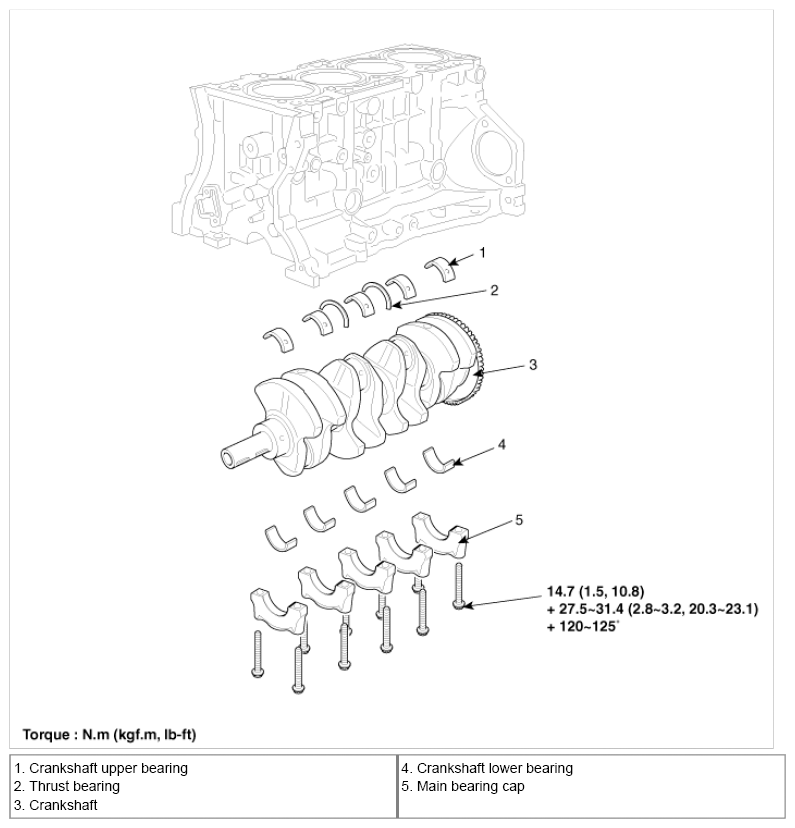

Fig 2: Exploded View Of Cylinder Block With Torque Specifications (2 Of 2)
G07367545Courtesy of KIA MOTORS AMERICA, INC.
