Repair procedures: Starter: Removal

  1. Disconnect the battery negative cable.
  2. Disconnect the starter cable (A) from the B terminal (B) on the solenoid (C), then disconnect the connector (D) from the S terminal (E).
    Fig 1: Starter Cable, B Terminal, Solenoid & Connector
    G07367713Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the 2 bolts holding the starter, then remove the starter (A).

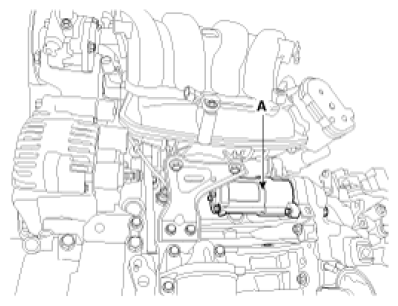

    Fig 2: Starter
    G07367714Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
  5. Connect the battery negative cable to the battery.
