Rear Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the rear door trim.

    Refer to REAR DOOR .

  3. Disconnect the connector from the motor.

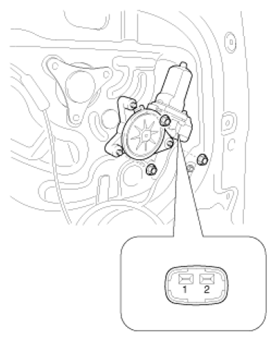

    Fig 1: Rear Power Window Motor Connector End View
    G07369318Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
    Fig 2: Power Window Motor Terminals Polarity Chart
    G07369319Courtesy of KIA MOTORS AMERICA, INC.
