Components And Components Location: Components

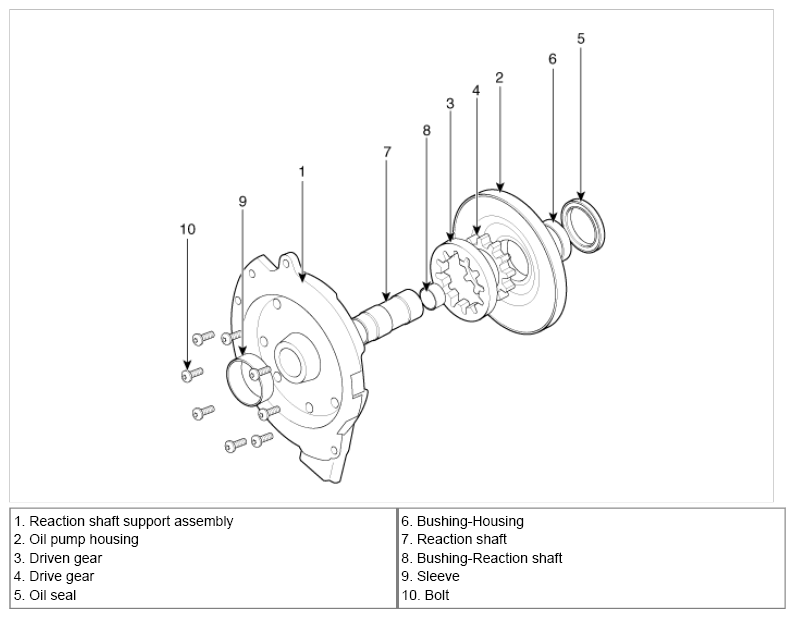

Fig 1: Exploded View Of Oil Pump

G07367958

Courtesy of KIA MOTORS AMERICA, INC.
