[Dual CVVT]

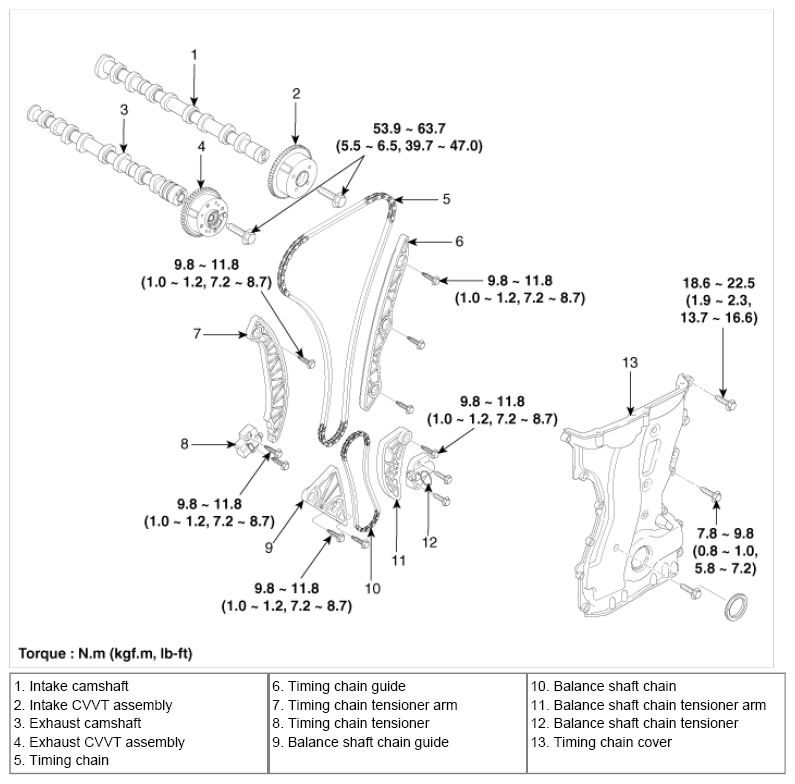

Fig 1: Exploded View Of Timing System (Dual CVVT)

G07367437

Courtesy of KIA MOTORS AMERICA, INC.
